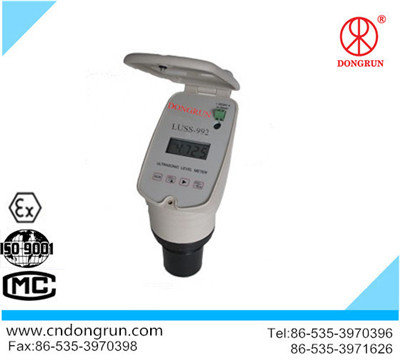

China Low Cost High Precision Ultrasonic Level Meter

Product Specifications

Prod Model:	LUSS-99
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
New Type Non Contact Digital Ultrasonic:	RS485 Ultrasonic Water Level Sensor
Kind:	Liquid Level Transmitter
Range:	0-30m
Structure:	All in One
Principle:	Ultrasonic
Warranty:	No

Product Description

Feature:

Adopting high speed digital signal processing technology, intelligent recognition and analysis, suitable for bad environment
Advanced signal environment display (oscilloscope technology), easy for debugging and installation
High-speed and reliable microcomputer processing, fast and stable
Non-contact measurement, multiple data filtering technology, stable and reliable measurement
High accuracy D/A output, improve the precision of 4-20 mA output
Equipped with 485 interface, it can connect a computer or other data collector

Technical Parameter:


No contact digital ultrasonic level sensor


Measurement Range	5m,10m,15m,20m,30m,40m
Accuracy	0.25%,0.5%
Resolution ratio	1mm
Operating Temperature	-20ºC~55ºC
Protection Grade	Transmitter:IP65  Probe:IP67
Power Supply	AC 220V±10%  6W ,DC24V
Output	4~20mA
External Loading	0~500Ω
Error	0.1%(Relative instrument indicate)
Test Value	Level or distance
RS485	Encoding: 1 start bit, 8 data bits, 1 stop bit Baud rate: 9600 00-09, when set as 00, every measurement will  output at a time When set as 01-09, need order query: Send the format :!X (x for address) The echo formats: 3.128;
Relay	Control mode: the upper limit of liquid level 2groups, the lower limit of liquid level  2 groups. Type: single pole double throw (normally open, normally closed) Contact capacity: AC250V 1 A.DC30V 5 A

Welcome to our factory.
Yantai dongrun Instrument Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.

Telephone: 0086 13791196971
