Intelligent Two-Wire pH Meter

Product Specifications

Prod Model:	PHS-8B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stability PH Meter:	Hot Sale pH Meter

Product Description

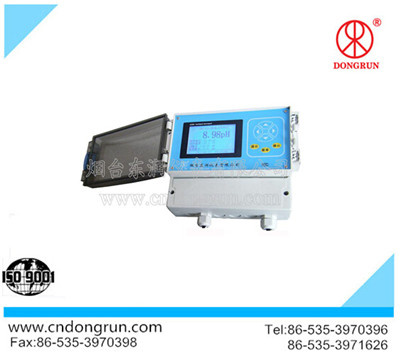

Intelligent Two-Wire PH Meter

PHS-8B intelligent industrial pH transmitter is the
Intelligent industrial online analytical instrument. It can be connected to
The high-impedance analog signal pH ORP electrode
Of many companies at home and abroad. It can be
Used to detect the pH, ORP value of the solution in
Chemical, petroleum, rubber, paper, tobacco, alcohol,
Sugar, food, mining, smelting, iron and steel, power
Generation, pharmaceuticals, water treatment and other industries.

Technical parameter

Measurement range	pH 0~14  ORP-1999~+1999mV
Instrument stability	±0.05pH(±2mV)/48 hour
Measurement error	±0.05pH(±2mV)
Instrument resolution	±0.01pH(1mV)
Input impedance	>3×1012Ω
Output signal	4~20mA.DC or RS485(MODBUS)
Input signal	high impedance millivolt signal
Output load resistance	4~20mA.DC, 0~500Ω
Alarm setting range	0~14pH( can be set)
Alarm setting hysteresis width	full scale hysteresis setting
Alarm output contact capacity	250VDC, 3A
Temperature measurement range	-10~150°C
Operating ambient temperature	-10~55°C
Power supply	220V. AC ±10%, 50Hz, 15W
Temperature compensating range	-10~100°C
Temperature compensating error	<0.005PH/°C
Protection grade	IP65
Dimension	210(width)×185(height)×105(thickness)
