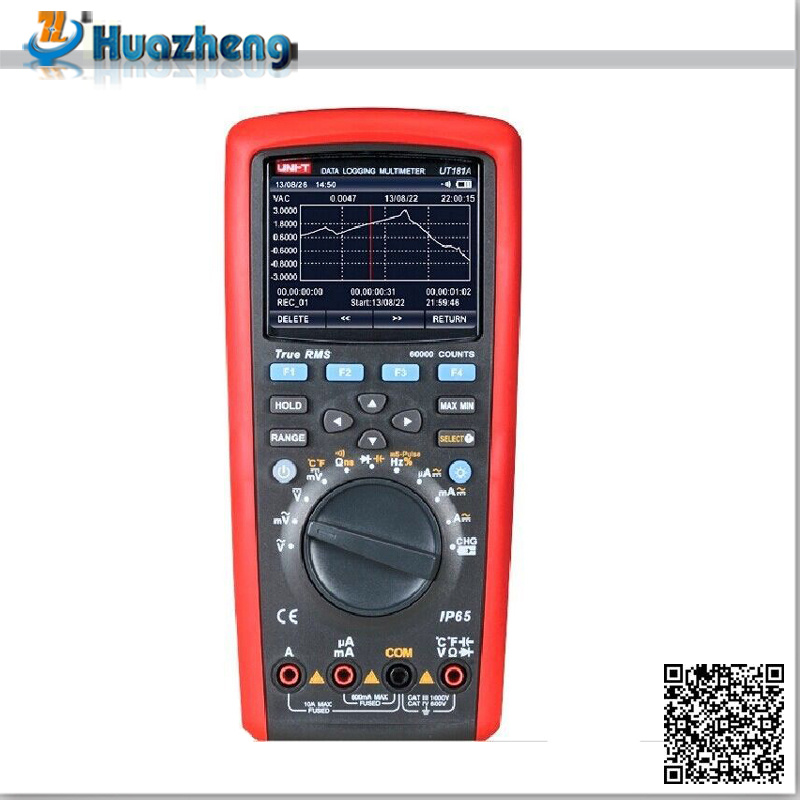

China Multifunction Digital Panel Digital Multimeter
I. Product Description of China Multifunction Digital Panel Digital Multimeter:
1. 60000 display count, 320X240 3.5"TFT full color LCD, Multi-function selection menu, displaying multiple sets of test data simultaneously;
2. AC/DC Voltage, AC/DC current, resistance, conductance, diode, capacity, frequency, duty cycle, pulse width, temperature(ºC/ºF) ;
3. True RMS, Ac voltage bandwidth 100KHz, Ac Current bandwidth 100KHz, alternative AC/DC measurement;
4. Single record data with time remarked, max data logging is 20000,checking and deleting the data;
5. Continuous record data with time remarked, max data logging is 20000. Checking the data by tracing the trend chart, which makes it possible to detect the abnormal signal with the supervisors,Naming, checking and deleting the records;
6. Time signal can make in capture wave form under maximum mode / minimum mode / average mode;
7. In sync on step wave signal;
8. Measuring current can reach at 20A (switch on 30s, pause 10seconds);
9. Using USB(standard accessory) to connect to PC to proceed USB communication . It can use Bluetooth module(alternative accessory) to proceed Bluetooth communication with cellphone;
10. Having the function of alarming when test-lead misplug. Double injection safety shell and IP 65 waterproof.;
11. Help Menu, offering convenient instruction for users;
12. Rechargeble Lithium battery, having long lifetime.
II. Parameter of China Multifunction Digital Panel Digital Multimeter
Specifications | Range | Best Accuracy |
|
| Model | UT181 | UT181A |
|
| DC Voltage (V) | 60mV/600mV/6V/60V/600V/1000V | ±(0.025%+5) |
|
| AC Voltage (V) | 60mV/600mV/6V/60V/600V/1000V | ±(0.3%+30) |
|
| DC Current (A) | 600μA/6000μA/60mA/600mA/10A | ±(0.08%+10) |
|
| AC Current (A) | 600μA/6000μA/60mA/600mA/10A | ±(0.6%+20) |
|
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.05%+2) |
|
| Admittance(nS) | 60nS | ±(2%+10) |
|
| Capacitance (F) | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(2%+5) |
|
| Frequency (Hz) | 10Hz-60MHz | ±(0.01%+5) |
|
| Temperature (°C) | -40 °C~1000°C | ±(1%+30) |
|
| Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
|
| Features |
|
| Display Count |
| 60000 |
|
| Auto Range |
| √ |
|
| Manual Range |
| √ |
|
| True RMS |
| √ |
|
| Bandwidth (Hz) | 100kHz | √ |
|
| AC + DC |
| √ |
|
| Low Pass Filter | 1KHz(-3db) | √ |
|
| dBV/dBm |
| √ |
|
| Continuity Buzzer |
| √ |
|
| Diode | Around 3V | √ |
|
| Duty Cycle | 10% ~ 90% | √ |
|
| Dual Temperature Measurement | T1,T2, T1-T2,T2-T1 | √ |
|
| Data Hold |
| √ |
|
| Peak Hold |
| √ |
|
| Relative Mode |
| √ |
|
| Data Logging | 20000 | √ |
|
| Trend Capture |
| √ |
|
| MAX/MIN/AVG |
| √ |
|
| Date Time Display |
| √ |
|
| Data Comparsion |
| √ |
|
| Display Type | 3.5 Inches 64k Color TFT LCD (320 * 240) | √ |
|
| Backlight Adjustment |
| √ |
|
| Analogue Bar Graph | 61 | √ |
|
| USB Interface |
| √ |
|
| Mis-Plug Alarm |
| √ |
|
| Low Battery Indication |
| √ |
|
| Auto Power Off |
| √ |
|
| Re-Chargeable Battery |
| √ |
|
| Input Protection |
| √ |
|
| Input Impedance for DCV | Around 10MΩ | √ |
|
| General Characteristic |
|
| Power | 7.4V 2200mAh Li-Battery |
|
| LCD Size | 70mm × 52mm |
|
| Product Color | Red and Grey |
|
| Product Net Weight | 638.6 g |
|
| Product Size | 103mm × 225mm × 59mm |
|
| Standard Accessories | Batteries, Test Lead, Temperature Adaptor, Point Contact Temperature Probe × 2, Power Adaptor, PC Software CD, USB Interface Cable |
|
|
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual |
|
| Standard Quantity Per Carton | 20PCs |
|
| Standard Carton Measurement | 480mm×385mm×505mm (0.085 CBM Per Standard Carton) |
|
| Standard Carton Gross Weight | 26.5 Kg |
|
| Optional Accessories* | Bluetooth Adaptor (UT-D07) |
|
III. Company Information
HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malaysia, Vietnam and so on.
Our main products are Digital Multimeter, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
IV. Our Services
1. 24 hours hot line.
2. We supply OEM service.
3. Our engineers available to service machinery overseas.
4. We can produce the products as your request.
5. To produce high quality products, services to the public.
6. To act quickly, seize the opportunity, continuous innovation, the pursuit of excellence.
VI. FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoding city, Hebei province, China.
You can go to Baoding by train directly.
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A:Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, CE,ISO, SGS authentication.
5. Q: May I send deposit by Paypal?
A: yes, for the small amount, we accept paypal.
6. Q: May I know your payment term?
A: Mostly, we work with: FOB / CNF / CIF or EX-WORK.
100% by T/T before delivery. Small amount by T/T or Western Union or Paypal are acceptable.
7. Q: May I know your delivery term?
A: Depending on your quantity, for goods we have in stock, Delivery takes 2 days to comply with your requ est.
For Regular order, delivery takes between 20-30 days.
