Product Specifications
| Prod Model: |
TS120N-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

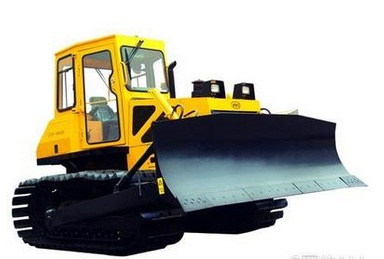

120HP Wet Type Crawler Bulldozer Main features:
1. Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
2. Turning clutch:Choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, lightly and conveniently operating.
3. Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
4. Operation environment is fully closed, hexahedral cab with lower noise; effectively reducing noise beside your ear, extending your visual field and effectively improving comfort;
5. Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation;
6. Operation device: several devices such as direct-pouring shovel, environmentally hygienic, angle shovel, coal-pushed shovel and soil scarifier are available for user.
7. It is suitable for working conditions such as wetland, desert and coal yard.
8. It features low land pressure, not easy to sink in the soft-ground.
120HP Wet Type Crawler Bulldozer Technical specifications:
| Model | Unit | TS120N-3 |
| Total weight | kg | 13500 |
| Max towing force | KN | 115 |
| Engine model | / | LR6A3Z-20 |
| Engine rated power | KW | 93 |
| Engine rated speed | r/min | 2000 |
| Fuel consumption of the engine | g/kw.h | ≤246 |
| Forward travel speed | km/h | 2.4-10.6 |
| Reverse travel speed | km/h | 3.8-7.0 |
| Carpiller track board with | mm | 720 |
| Land pressure | Kpa | 37 |
| Overall length | mm | 4610 |
| Overall width | mm | 3450 |
| Overall height | mm | 2940 |
| Bulldozer width | mm | 3450 |
| Bulldozer height | mm | 1060 |
| Blade max lifting height | mm | 894 |
| Blade max digging depth | mm | 400 |
| Towing equipment scarifier(optional) | / |
stationary type |
