Product Specifications
| Prod Model: |
TS100L-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

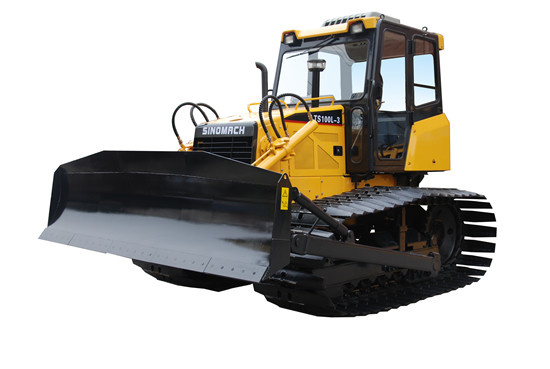

100HP Mechanical Wet Type Crawler Bulldozer Made In China Main Features:
1. Adopts engine produced with British Ricardo joint-venture technology, which is of lower oil consumption, stronger torsion, energy saving and environment protecting.
2. Employs dry, multi-piece and constant combining main clutch, which features large torque reserve and reliable performance.
3. Equipped with 4F+2R mechanical shift gearbox with simple operation and convenient maintaining.
4. Uses dry and multi-piece steering clutch, which is operated with hydraulic power and features easy maintaining and simple controlling.
5. Adopts two classes, straight teeth and big modulus gear transmission with stronger carrying capacity and higher reliability.
6. Installed with luxurious cab with conditioner system in the top, providing comfortable operating space.
7. Suitable for water-power engineering, farmland transformation, river and pond marsh, mud and loosing and soft environment.
100HP Mechanical Wet Type Crawler Bulldozer Technical Parameters:
| Model | Unit | TS100L-3 |
| Total weight | kg | 10850 |
| Max towing force | kN | 95 |
| Engine model |
| LR6A3-23 |
| Engine rated power/speed | kw/ r/min | 81/2300 |
| Fuel consumption of the engine | g/km.h | ≤242 |
| Engine max torque | N.m | 400 |
| Forward I-IV gear travel speed | km/h | 2.6~10.4 |
| Backward I-II gear travel speed | km/h | 3.7~6.7 |
| Track board width | mm | 900 |
| Land pressure | kPa | 24.5 |
| Overall dimension(LxWxH) | mm | 4400x3200x3100 |
| Bulldozer (WxH) | mm | 3200x987 |
| Blade max lifting height | mm | 1000 |
| Blade max digging depth | mm | 365 |
| Traction device |
| Swing type |
