Product Specifications
| Prod Model: |
TS80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

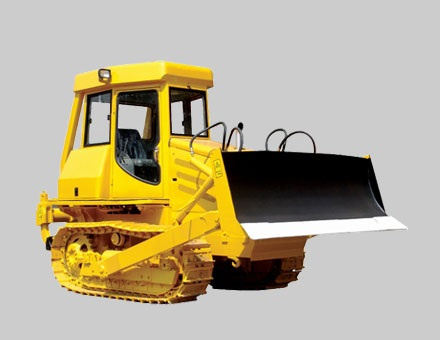

80horsepower wet type Crawler Bulldozer Main features:
4. Advanced operation control system, fully hydraulic aided steering, with flexible and labor-saving operation.
5. Driver cab is welded with profile steel, with high strength, resistant against impact, and good protection performance.
6. The machine is flexible and of high operation efficiency and applicable for construction in narrow ground.
1. The machine adopts the YTO LR4A3Z-22 surcharged diesel engine, with strong power, low noise and low specific fuel consumption.
2. Gearbox is 4F+2R mechanical gear shifting, applicable for various environments.
3. Integral trolley traveling construction adopting rigid chassis and semi-rigid hamger.
80horsepower wet type Crawler Bulldozer Technical parameters:
| Model |
| TS80 |
| Total weight | kg | 9000 |
| Max. towing force | KN | 82 |
| Engine model |
| LR4A3Z-22 |
| Rated power | KW | 70 |
| Rated rotation speed | r/min | 2200 |
| Fuel Consumption of the engine | g/kw.h | ≤235 |
| Engine max. torque | N.M | 313 |
| Forward I-IV gears | km/h | 2.4~10.4 |
| Reverse I-II gears | km/h | 4.9~8.9 |
| Max. slope angle | ° | ≥30 |
| Caterpillar track board width | mm | 600 |
| Land pressure | Kpa | 34 |
| Overall length | mm | 4200 |
| Overall width | mm | 2934 |
| Overall height | mm | 2890 |
| Blade width | mm | 2934 |
| Blade height | mm | 930 |
| Blade max lifting height | mm | 715 |
| Blade max digging depth | mm | 357 |
| Cutting angle(adjustable) | ° | 55 |
| Traction equipment/ Scarifier (optional) | Stationary type/ Three teeth |
