Product Specifications
| Prod Model: |
SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
0402, 0603, 0805 |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Installation: |
SMD Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
CPU and So on |
| Quantity: |
as Required |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Brand: |
Tonze |
Product Description

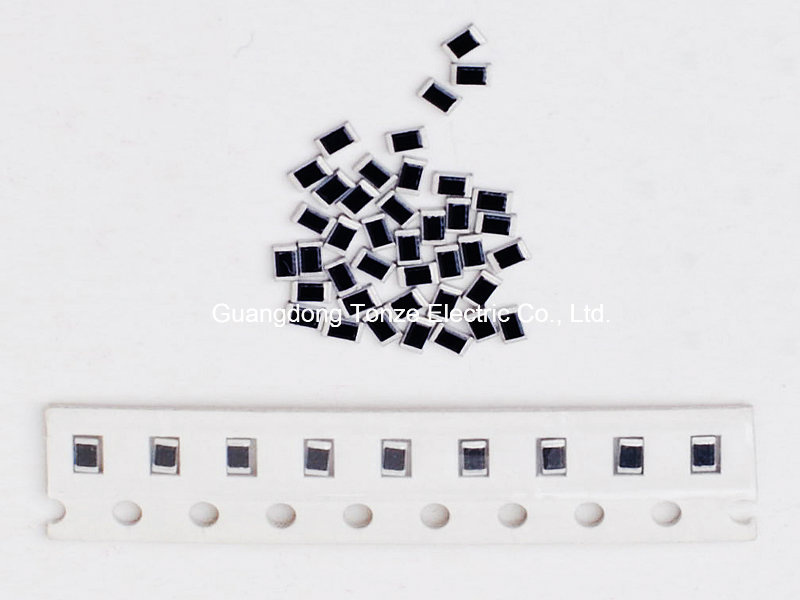

Product Series: 0402, 0603, 0805 Features:· Miniature size, no down-lead, and ideal for high-density surface mounting requirement
· Ideal for wave and refold soldering
· Superior solder ability and resistance to soldering heat and impact
Application:· Temperature compensation of semiconductor integrate circuit, LCD, transistor, crystal oscillator of mobile communication equipments
· Temperature detection of rechargeable batteries and CPU
· Temperature compensation of diversified circuits
Specification:· The range of resistance under the rated zero power (R25ºC): 0.1~1000KΩ
· The allowable tolerance of R25ºC: ±1%,±2%,±3%,±5%
· The range of B value (K): 3100~4500K
· The allowable tolerance of B value: ±1%,±2%,±3%,±5%
· The range of operating temperature: -40ºC ~ +125ºC
· Dissipation factor: ≤1.5mW/ºC (In Still Air)
· Thermal time constant: ≤5S (In Still Air)
· Encapsulated: Chip type

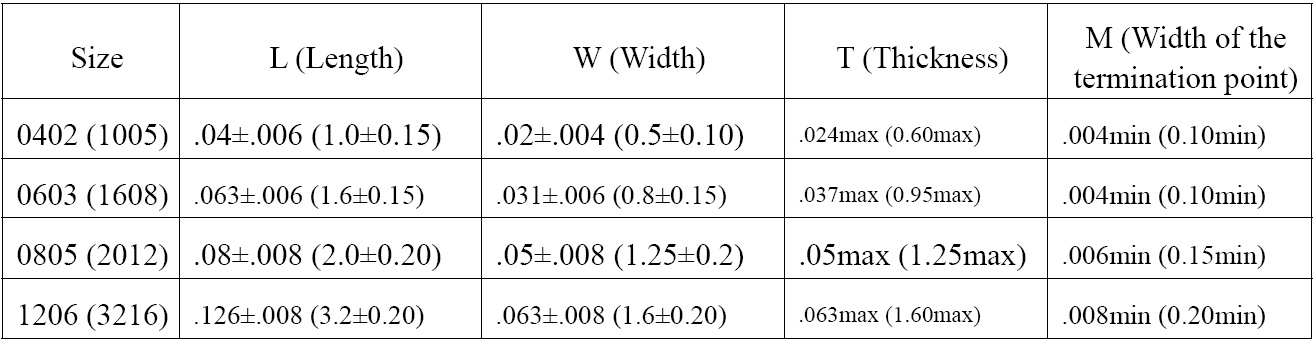

· Dimension: SMD0402,SMD0603,SMD0805
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
