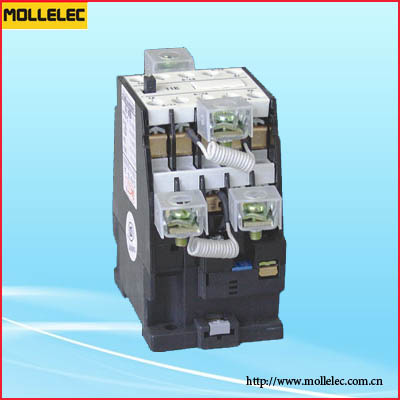

Cj19-a Switch-Over Capacitor Contactor

Name: Cj19-a Switch-Over Capacitor Contactor
Brand: china-manufacturer-directory.com
SKU: 714309425
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	CJ19-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacitor Contactor:	Cj19 Switch-Over Capacitor Contactor
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Application:	General Purpose
Capacitance:	>100uf

Product Description

CJ19-A Contactors
1. Up to 380V AC 50Hz or 60Hz
2. Switch-over capacitor contactors
3. Experienced factor since 1985

CJ19A SWITCH-OVER CAPACITOR CONTACTOR
SPECIFICATIONS:

Model		CJ19-32 CJ16-32	CJ19-43 CJ16-43	CJ19B-32 CJ19-32	CJ19B-43 CJ19C-43	CJ19B-63 CJ19C-63
400V Controlled capacitor	Qnkvar Output	18(16)	20	15	20	32
	Rated current(A)	26(23)	29	21.6	29	46
Conventional thermal current Ith A		32	43	32	43	69
Controlling capability to surge alrrent		20ln
Coll	Working voltage US 50Hz V
	Operating range
	Consurmed power(VA) start holding	68 12	115 11			200 20
Rated current for short-circuit Protected fuse		1.5-25ln
Rated insulation voltage Ui 50Hz V		500				600
Conventional heating current of auxiliary contacts A		10
Mechanical life ten thousand times		100				80
Electrical life Operating freauency 120 1/h thousand times		10				8
Weight kgV		About 0.58	About 0.57		About 0.6	About 1.25
Contactor model		CJ19-25,32,43 CJ19B-32,43/ CJ9C-32,43			CJ19-63 CJ19B-63/ CJ9C-3
Auxiliary contact		20E	0.2E	11E	21E	12E
Quantity	Nomal open (make)	2	-	1	2	1
	Nomal close (break)	-	2	1	1	2
Mark		13,14, 23,24	-	13,14	13,14, 33,34	13,14
			11,12, 23,24	21,22	21,22	21,22 31,32

We specialize in designing and manufacturing circuit protection products, motor protection products, building electric accessories and low and high voltage products.

We are one of the biggest companies manufacturing and exporting low and high voltage electric products in China. Our productions have been exported to America, Europe, Australia, Africa, the Middle East, and so on.

We have obtained many international certificates, such as CB, CE, SEMKO, and so on. We have superior technology department and we have top test equipment. All goods are made according to the international standards, such as IEC947 and IEC60898.

We are willing to create a better future with you.

Our purposes are as follows:

1, Superior products

Advanced technology, strict quality control system and reliable services make customers worldwide satisfied.

2, Favorable prices

Large-scale production reduces the cost and makes our products more competitive.

3, Timely delivery

4, Perfect service

If you establish business relations with us, we will be your friends forever and try our best to serve you. We aim to help our customers win more customers and enlarge the market. We are looking forward to establishing relationships with you in the near future.
