Yueqing Moller Electric Co., Ltd. >> IGBT Modules

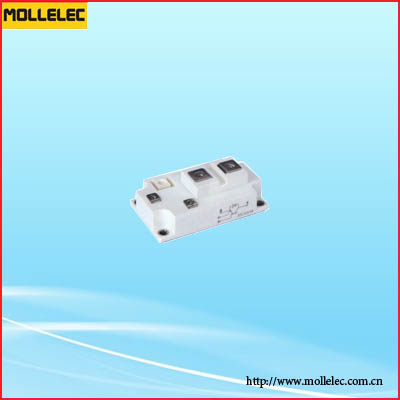

IGBT Modules

Name: IGBT Modules
Brand: China-Manufacturer-Directory.com
SKU: 715098825
Availability: InStock
Rating: 4.4 (65 reviews)

Supplier:	Yueqing Moller Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Schottky
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Key Word:	Rectifier Diode
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD

Product Description

IGBT ModulesIGBT ModulesIGBT Modules 1. Buide-in ouble diode
2. Baseplate communal electrode
3. CE, ISO, RoHS
4. OEM: Available
General Description
SJ IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. It's designed for the applications such as SMPS and UPS.

Features
High short circuit capability, self limiting to 6*I
Ultra low loss IGBT technology
Low inductance case
Fast & soft reverse recovery anti-parallel FWD
Latch-up free
Isolated copper baseplate using DCB Direct Copper Bonding technology

Typical Applications
Switching mode power supplies
DC servo and robot drives
AC motor speed control
UPS
General power switching applications
Inverters and DC Choppers
Electronic welders at fsw up to 20kHz

General Description
SJ IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.It's designed for the applications such as SMPS and UPS.

Features
High short circuit capability,self limiting to 6 * I
Ultra low loss IGBT technology
Low inductance case
Fast & soft reverse recovery anti-parallel FWD
Latch-up free
Isolated copper baseplate using DCB Direct Copper Bonding technology

Typical Applications
Switching mode power supplies
DC servo and robot drives
AC motor speed control
UPS
General power switching applications
Inverters and DC Choppers
Electronic welders at fsw up to 20kHz

Ordering Instructions

Type	I_C@	I_C@	V_CE	V_CE(sat)@	(Eon+Eoff)	R_th(j-c)	Circuit type
	T_c=25°C	T_c=80°C		25°Ctyp.	@125°Ctyp.
	A	A	V	V	mJ	°C/W
Low loss and fast series
ZG200SGL120C2S	370	200	1200	1.80	44	0.0800
ZG300SGL120C2S	570	300	1200	1.80	64	0.0550
ZG400SGL120C2S	625	400	1200	1.80	85	0.0500
ZG600SGL120C2S	910	600	1200	1.90	151	0.0410

We specialize in designing and manufacturing circuit protection products, motor protection products, building electric accessories and low and high voltage products.

We are one of the biggest companies manufacturing and exporting low and high voltage electric products in China. Our productions have been exported to America, Europe, Australia, Africa, the Middle East, and so on.

We have obtained many international certificates, such as CB, CE, SEMKO, and so on. We have superior technology department and we have top test equipment. All goods are made according to the international standards, such as IEC947 and IEC60898.

We are willing to create a better future with you.

Our purposes are as follows:

1, Superior products

Advanced technology, strict quality control system and reliable services make customers worldwide satisfied.

2, Favorable prices

Large-scale production reduces the cost and makes our products more competitive.

3, Timely delivery

4, Perfect service

If you establish business relations with us, we will be your friends forever and try our best to serve you. We aim to help our customers win more customers and enlarge the market. We are looking forward to establishing relationships with you in the near future.
