Product Specifications
| Prod Model: |
MDS60 MDQ60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Rectifier Diode |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
Product Description

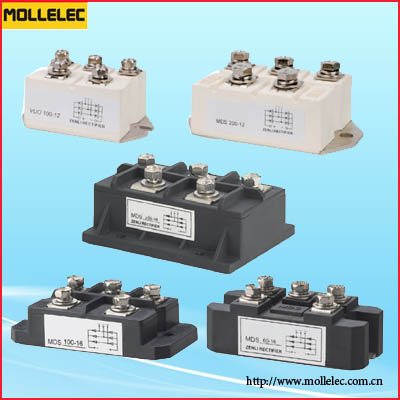

1. Bridge Rectifier Modules
2. Non-insulation
3. Baseplate communal electrode
4. International standard packing
5. CE, ISO,
Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic
Easy to install and maintain
Low VFM
Typical Applications
Instrument's DC power supply
PWM frequency transformer
Input rectification power supply
DC motor field power supply
Switch power supply input rectification
Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic
Easy to install and maintain
Low V FM |
Typical Applications
Instrument's DC power supply
PWM frequency transformer
Input rectification power supply
DC motor field power supply
Switch power supply input rectification |
Ordering Instructions
|
|
|
|
|
|
|
Three-phase Bridge Rectifier Modules (MDS) |
|
Type |
I d @T c |
V RRM |
V FM @I FM |
I RRM |
I F(AV) |
I F(RMS) |
I TSM |
R jc |
T jm |
V iso |
Outline |
|
A |
°C |
V |
V |
A |
mA |
A |
A |
kA |
°C/W |
°C |
V(AC) |
|
MDS60 |
60 |
100 |
600-2000 |
1.45 |
60 |
8 |
20 |
39 |
0.75 |
0.55 |
150 |
2500 |
M16/M17/M18 |
|
MDS80 |
80 |
100 |
600-2000 |
1.37 |
80 |
8 |
25 |
47 |
1.00 |
0.32 |
150 |
2500 |
|
MDS100 |
100 |
100 |
600-2000 |
1.43 |
100 |
10 |
33 |
51 |
1.50 |
0.24 |
150 |
2500 |
|
MDS150 |
150 |
100 |
600-2000 |
1.40 |
150 |
10 |
50 |
71 |
2.50 |
0.15 |
150 |
2500 |
M19/M20 |
|
MDS200 |
200 |
100 |
600-2000 |
1.37 |
200 |
10 |
75 |
105 |
2.50 |
0.15 |
150 |
2500 |
|
MDS250 |
250 |
100 |
600-2000 |
1.37 |
250 |
10 |
100 |
157 |
2.75 |
0.14 |
150 |
2500 |
|
MDS300 |
300 |
100 |
600-2000 |
1.38 |
300 |
9 |
125 |
200 |
2.90 |
0.14 |
150 |
2500 |
M21 |
|
MDS400 |
400 |
100 |
600-2000 |
1.35 |
400 |
10 |
150 |
240 |
2.95 |
0.13 |
150 |
2500 |
|
MDS500 |
500 |
100 |
600-2000 |
1.39 |
500 |
10 |
200 |
320 |
3.15 |
0.12 |
150 |
2500 |
M22 |
|
MDS600 |
600 |
100 |
600-2000 |
1.39 |
600 |
10 |
250 |
400 |
3.50 |
0.10 |
150 |
2500 |
|
|
Single-phase Bridge Rectifier Modules (MDQ) |
|
Type |
I d @T c |
V RRM |
V FM @I FM |
I RRM |
I F(AV) |
I F(RMS) |
I TSM |
R jc |
T jm |
V iso |
Outline |
|
A |
°C |
V |
V |
A |
mA |
A |
A |
kA |
°C/W |
°C |
V(AC) |
|
MDQ60 |
60 |
100 |
600-2000 |
1.45 |
60 |
8 |
30 |
60 |
0.75 |
0.55 |
150 |
2500 |
M16/M17/M18 |
|
MDQ80 |
80 |
100 |
600-2000 |
1.37 |
80 |
8 |
40 |
70 |
1.00 |
0.32 |
150 |
2500 |
|
MDQ100 |
100 |
100 |
600-2000 |
1.43 |
150 |
10 |
50 |
86 |
1.50 |
0.24 |
150 |
2500 |
|
MDQ150 |
150 |
100 |
600-2000 |
1.37 |
230 |
10 |
75 |
106 |
2.00 |
0.15 |
150 |
2500 |
M19/M20 |
|
MDQ200 |
200 |
100 |
600-2000 |
1.40 |
315 |
10 |
100 |
157 |
2.50 |
0.15 |
150 |
2500 |
|
MDQ250 |
250 |
100 |
600-2000 |
1.38 |
380 |
8 |
125 |
200 |
2.75 |
0.14 |
150 |
2500 |
|
MDQ300 |
300 |
100 |
600-2000 |
1.40 |
450 |
10 |
150 |
240 |
2.90 |
0.13 |
150 |
2500 |
M21 |
|
MDQ400 |
400 |
100 |
600-2000 |
1.40 |
500 |
9 |
200 |
320 |
3.20 |
0.12 |
150 |
2500 |
|
MDQ500 |
500 |
100 |
600-2000 |
1.43 |
600 |
10 |
250 |
400 |
3.50 |
0.10 |
150 |
2500 |
M22 |
|
