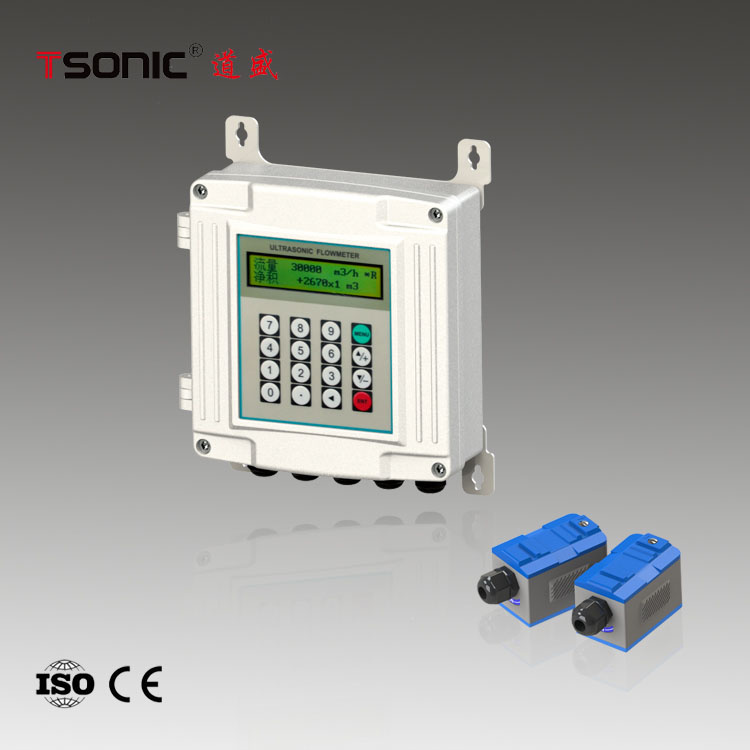

Clamp on Type Wall Mounted Ultrasonic Flow Meter

Clamp on Type Wall Mounted Ultrasonic Flow Meter
Supplier: Dalian Taosonics Instrument Co., Ltd.
Price: US $ 280/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: TUF-2000S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy: ?à0.6-1%
Main Application: Fuel Oil
Sensor: Clamp-on/External
Type: Ultrasonic Flow Meter
Measuring Media: Liquid
Size: Dn15-Dn6000

Product Description

Clamp on ultrasonic flowmeter is available in market in various sized, designs and shapes. It is highly appreciated for their long functional life.

Non-invasive clamp-on technology
Easy to install
No pressure drop, moving parts, leakage or corrosion
No pipe cutting or process interruption
Measurement independent of fluid properties
Wide Bi-directional flow range


Features:





Working Environment


Main UnitTransducer
Protection LevelIP65IP68
Humidity

≤85%RH

Temperature-20~60ºC-30~160ºC







Basic Parameters

Accuracy

≤1%

Velocity range0~±10m/s, Bi-directional measurement
Pipe sizeDN32~DN6000mm
Temperature-30~160ºC
Type of liquidSingle liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe materialSteel, stainless steel, cast iron, copper, PVC, aluminum, glass steel, etc. Liner is allowed.
Signal output

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

Signal input3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
InterfaceRS485, support MODBUS
Data storageSD card regularly store the pre-set results(optional)
Power supplyDC8~36V or AC85~264V


Dalian Taosonics Instrument Co., Ltd. (short for Tsonic) is located in a beautiful coastal city - Dalian of China. We are a high technology enterprise which specializes in product designing, developing and manufacturing. Our company has a factory and professional employees.

Tsonic's products are designed by domestic famous flowmeter experts and professional designers. Our products include encompass ultrasonic flowmeters / calorimeters, ultrasonic industrial water meters and ultrasonic flow/heat modules, which are widely used in oil, chemical, metallurgy, water conservancy, heating, aerospace, pumps, boilers, etc.

Tsonic follows the management concept of "Quality products and Mutual benefits" and provides high quality products, excellent service and low price. We aim to meet customers' requirements to enhance their competitiveness and profitability. Tsonic sincerely invites clients to join us to develop the market of ultrasonic flowmeter and calorimeter together.
