Dalian Taosonics Instrument Co., Ltd. >> Tuf-2000h Handheld Ultrasonic Flow Meter

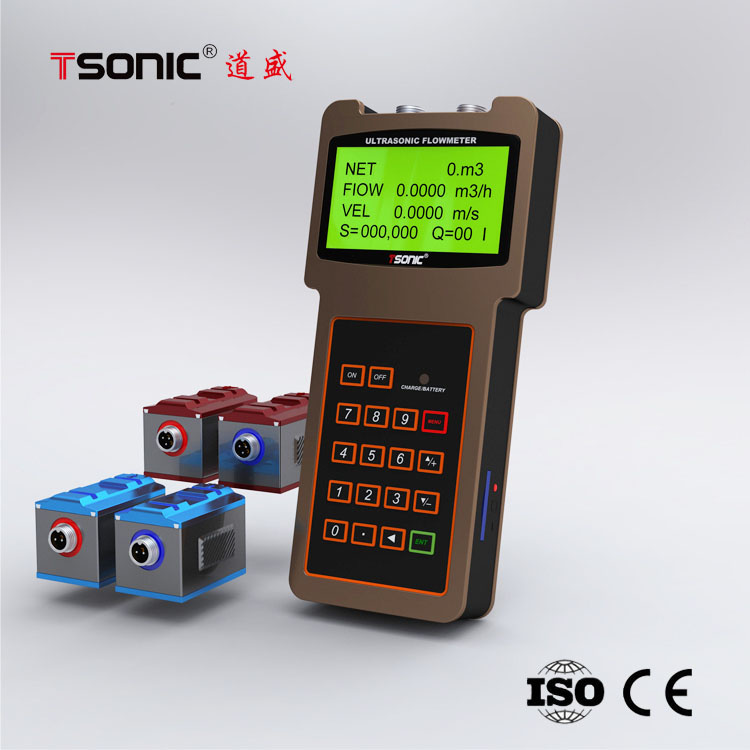

Tuf-2000h Handheld Ultrasonic Flow Meter

Name: Tuf-2000h Handheld Ultrasonic Flow Meter
Brand: china-manufacturer-directory.com
SKU: 701755962
Availability: InStock
Rating: 4.8 (52 reviews)

Supplier:	Dalian Taosonics Instrument Co., Ltd.
Price:	US $ 380/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TUF-2000H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	?à0.6-1%
Main Application:	Fuel Oil
Sensor:	Clamp-on/External
Type:	Ultrasonic Flow Meter
Measuring Media:	Liquid
Size:	Dn15-Dn6000

Product Description

TUF-2000H ultrasonic flowmeter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a handheld measurement system which is both easy to install and use. The TUF-2000 operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next.

Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The TUF-2000 can be used for metallic, plastic and rubber tubes.

Features:

Items		Performance & Parameter
Main unit	Principle	Transit time ultrasonic flowmeter
	Accuracy	± 1%
	Display	4×16 character LCD with backlight, support the language of Chinese, English and Italian
	Signal Output	1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms)
	Data Interface	Insulate RS232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
	Temperature	-30~160ºC
	Turbidity	Less than 10000ppm and little bubble
	Flowrate	0 ~ ±7m/s
Working Environment	Temperature	main unit: -20~60ºC; Transducer: -30~160ºC
Working Environment	Humidity	main unit: 85%RH; Transducer protection level: IP67
Power Supply	3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation). Achieve to continuous measurement by connecting AC 90V - 260V adapter
Power Consumption	1.5W
Housing Material	Inflaming retarding ABS
Main unit Weight	390g

Optional Transducers:

Types	Spec.	Model	Measure range(mm)	Temperature	Size
Clamp on	Small	TS-2	DN15~100	-30~90ºC	42×25×32mm
	Medium	TM-1	DN50~700	-30~90ºC	69×39×44mm
	Large	TL-1	DN300~6000	-30~90ºC	97×54×53mm
High temperature clamp on	Small	TS-2-HT	DN15~100	-40~160ºC	45×25×32mm
	Medium	TM-1-HT	DN50~700	-40~160ºC	64×39×44mm
	Large	TL-1- HT	DN300~6000	-40~160ºC	97×54×53mm
Mounting bracket clamp on	Small	HS	DN15~100	-30~90ºC	318×59×85mm
	Medium	HM	DN50~300	-30~90ºC	568×59×85mm
	Extended	EB-1	DN300~700	-30~90ºC	188×59×49mm
High temperature mounting bracket clamp on	Small	HS-HT	DN15~100	-40~160ºC	318×59×110mm
	medium	HM-HT	DN50~300	-40~160ºC	568×59×110mm
	extended	EB-1-HT	DN300~700	-40~160ºC	188×59×49mm

Dalian Taosonics Instrument Co., Ltd. (short for Tsonic) is located in a beautiful coastal city - Dalian of China. We are a high technology enterprise which specializes in product designing, developing and manufacturing. Our company has a factory and professional employees.

Tsonic's products are designed by domestic famous flowmeter experts and professional designers. Our products include encompass ultrasonic flowmeters / calorimeters, ultrasonic industrial water meters and ultrasonic flow/heat modules, which are widely used in oil, chemical, metallurgy, water conservancy, heating, aerospace, pumps, boilers, etc.

Tsonic follows the management concept of "Quality products and Mutual benefits" and provides high quality products, excellent service and low price. We aim to meet customers' requirements to enhance their competitiveness and profitability. Tsonic sincerely invites clients to join us to develop the market of ultrasonic flowmeter and calorimeter together.
