Clamp on Ultrasonic Water Flow Meter (A+E 80FB)

Name: Clamp on Ultrasonic Water Flow Meter (A+E 80FB)
Brand: China-Manufacturer-Directory.com
SKU: 754886505
Availability: InStock
Rating: 4.8 (144 reviews)

Supplier:	Shanghai AEAD Technology Co., Ltd.
Price:	US $ 450/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	A+E 80FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Water Flow Meter
Sensor Temperature:	-40 to 160 C (32 to 320 F)
Repeatability:	0.2%
Battery Operation:	15 Hours (1900mAh Ni-MH Battery)
Internal Data Logger:	Min. 2GB SD Card
Output:	RS485
Display:	2 Lines Characters LCD Screen
Units:	Gallon, Cubic Feet, Cubic Meter, etc.
Amb. Temp:	-20 to +75 C ( -4 to +167f)
Pipe Size:	15~100mm, 50~700mm, 300~6000mm
Type:	Ultrasonic Flow Meter
Measuring Principle:	Acoustics
Measuring Media:	Liquid
Accuracy:	>?à1%
Main Application:	Sea Water, Alcohol
Sensor:	Clamp-on/External
Application:	Industrial, Energy, Environmental
Size:	Dn15-6000 (1/2" to 236")

Product Description

Clamp on Ultrasonic Water Flow Meter (A+E 80FB)

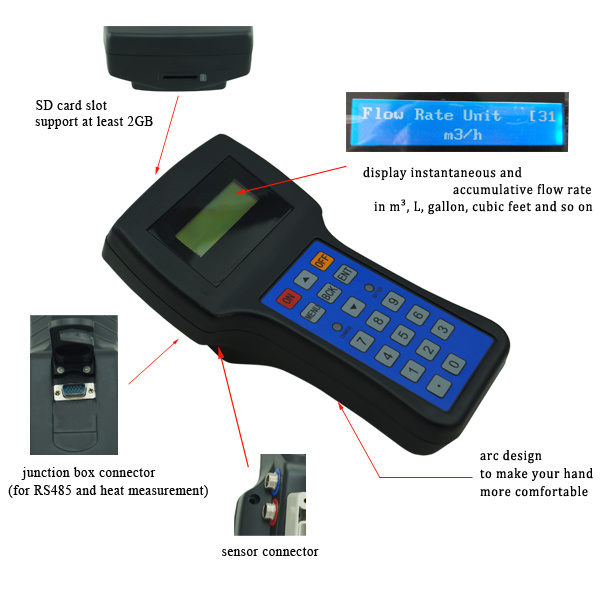

The 80FB is a micro-processor-based transit time water flow meter which could measure the flow of clean, homogeneous liquids ( liquids without large concentrations of suspended particles or gasses such as air bubbles).The water flow meter is non-invasive, which means that it measures flow from outside the pipe. The transducers could be mounted to a pipe within minutes, and flow measurements may be made without interrupting the flow or modifying pipe work. The device could be configured using an integral keypad for entering variables such as pipe size, pipe material, wall thickness and fluid type.

Specifications
Flow Element
Principle: ultrasonic water flow meter
Power requirements: Built-in 24V Ni-MH battery provides 15 hrs of continuous operation, Charging: 220V AC 56/60 Hz
Inputs/Outputs: 4-20mA, RS232 / RS485, Heat Flow
Dispaly: 4 line characters display instantaneous and accumulative flow, velocity and signal status
Units: User configured
Ambient conditions: -20 °C to +75 °C ( -4 to +167°F), 0 to 85% relative humidity
Size: 220*120*92mm (8-2/3"*4-3/4"*3-1/2"), 600g
Flow rate: 0-10m/s (0-33"ft/s)
Accuracy (at calibrated conditions): Flow: ± 1% reading, Heat: ± 2%
Repeatability: 0.2%
Protection: IP65
Internal data logger: approx. 30.000 samples (128kb)

Transducer

Technical parameters	Standard S1	Standard M1	Standard L1	S1H	M1H	HS bracket	HM bracket
Applicable pipe (mm)	15~100	50~700	300~6000	15~100	50~700	15~100	50~700
Material	Aluminum alloy			PES (Polyether Sulfone)
Working frequency	1 MHZ
Installation method	V (N,W)	V,Z	Z method	V (N,W)	V,Z	V (N,W)	V,Z
Calibration	Pairing & Calibrating for the complete machine
Magnetism	Yes			N/A		Yes
Applicable temperature	-40~90 °C			-40ºC~160 °C
Protection	IP68
Media type	Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave
Medium turbidity	<20000ppm with low bubble content
Applicable pipes	Uniform and compact pipes made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted.
Pipe lining material	Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene etc.
Signal cable	Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional.

Typical Applications
--pump testing and inspection
--inline flowmeter performance verification
--leakage and blockage detection
--flow surveys
--cooling and heating fluid measurements
--deluge and extinguisher system testing
--demineralised water measurement
--clean room applications

Warranty
All AEAD manufactured water flow meters are guaranteed for 12 months since delivery.

Package

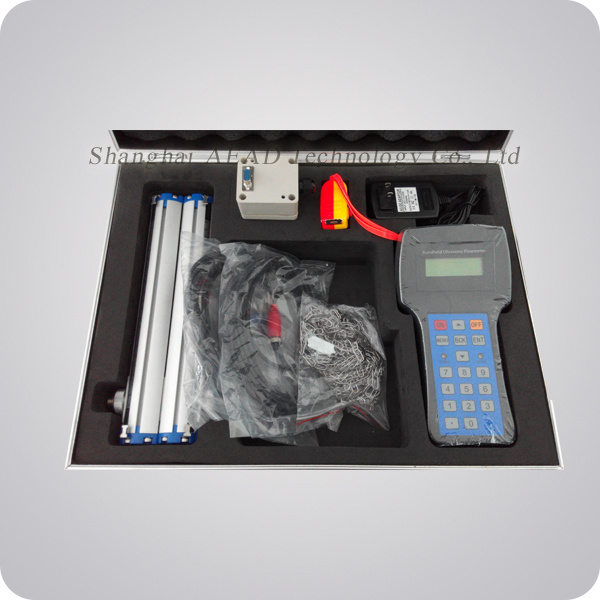

Water flow meter package: aluminum case in carton, size 51*41*18cm, gross weight 5.8kg.

About Company
AEAD Technology moves to Chinese first free trade zone --Shanghai Pilot Free Trade Zone in Nov. 2014. That is a milestone for the company development to global market.

AEAD Technology is committed to provide the very best support possible. Our customers have unique service needs, and we offer a variety of service options to support them. For any questions, you will either get the answer or have one of our professionals to contact you within 24 hours.

If you are interested in water flow meter, please call our office at +86-(0)21-5869 6328.
Alternatively, you can send us an email or use the contact form which can be found on the contact page of our website.

Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.

AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.

The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.

AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.

The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
