Classical Outdoor LED Display P10 with DIP346
Product Specifications
| Prod Model: |
P10-dip346 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP 346 |
| Module Size: |
160X160mm |
| Module Resolution: |
16X16dots |
| Cabinet Size: |
960X960mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
300W / m² |
| Application: |
Advertising,Stage Performance,Rental |
Product Description
Classical outdoor led display p10 with DIP346good display performance and competitive price
Product Features:
1. DIP led encapsulation confirm the high brightness even under sunlight, anti-corrosion, antifogging
2. Good waterproof IP65, long life span>100000Hours
3. High pixel density, High definition, Good uniformity,long view distance, keep good effection even from far away
4. Brightness can be adjusted automatically according to different surrondings,
Can be set to open and close the screen on fixed automatically

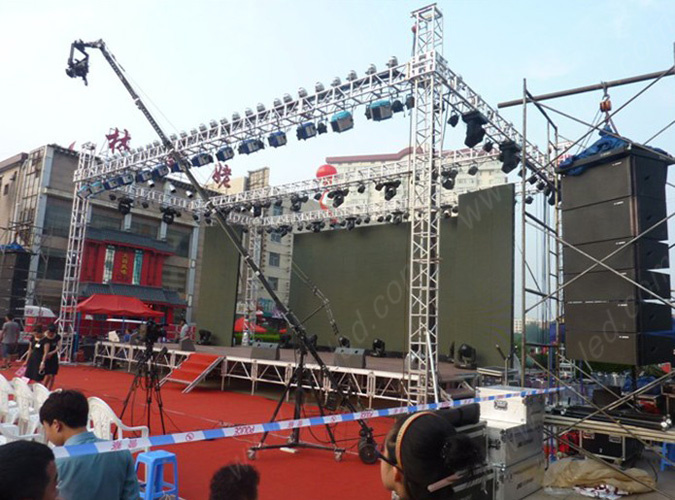

5. Can be fixed on the wall, on the street, on top of building, or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
6. Widely used for commercial led display, stage led display, mobile led display. Traffic led display, rental led display, sports led display etc.
| P10 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 10.0 |
| Pixel Density | Dots/sq.m | 10000 |
| Pixel Configuration |
| DIP346 |
| Cabinet Resolution | dots | 96×96 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 100/45 |
| Brightness | nits | ≥7500 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1000/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 960x960 |
| Cabinet Material |
| aluminum |
| Cabinet Weight | Kg | 35 |
| Module Size(W×H) | mm | 160×160 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/4 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
