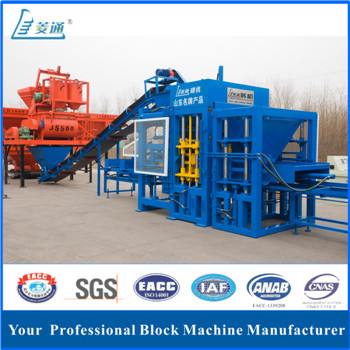

Clay Brick Machine

Product Specifications

Prod Model:	Qt 10-15
Markets:	Southeast Asia,Africa,Mid East,Eastern Asia
Model No:	T10-15 Brick Machine
Processing:	Brick Molding Machine
Brick Raw Material:	Concrete
Tolerance:	0.5mm
Brand Name:	Lingtong
Certificatite:	CE, SGS, ISO9001: 2000, ISO 9001:2000, ISO 9001:20
Place Of Origin:	Shandong, China (Mainland)
Method:	Hydraulic Pressure
Automation:	Automatic
Condition:	New

Product Description

qt 10-15 Brick Making Machine Manufacturer in China


Introduce of LTQT10-15 hollow block machine production line

Product Features
1. Vibrator and workbench become a whole so as to reduce processing of joint surface, fittings,
the loss of energy transfer and improve the efficiency of the vibration, trepanning the workbench
hole on the tank, and narrow trepanning area, put an end to the oil, to avoid damage to parts;
At the same time increase the space between eccentric shaft holes, intermediate connection by
 excessive gear, thereby increasing the vibration effective area, making the vibration more
 homogeneous, ensuring compactness and strength of block products.
2. Using the air spring (gasbag pneumatic cylinder)clamping to realize optimal damping effect and the load measurement and height control.
Vibration isolation effect is good and can reduce the noise generated by mechanical vibration.
3. Quick mold changeover equipment, guarantee the clearance homogeneous between the upper
 pressure head and mold frame and mold replacement is quick and easy.
4. Using the displacement sensor (electronic ruler). The sensor can send message and control by
displacement sensor.LEZ slide-block type mobile sensor (electronic ruler), with the durable conductive plastic resistor rail inside,
is suitable for the applications of position measurement and automation control.
5. Increase the racks. A vibration table does not bear a mold and external load, and can reduce
 the number of vibration isolation spring, so that the vibration isolation system is more flexible
and the noise will decrease accordingly.

Product Quality
Products produced at the production line must conform to the corresponding standards.
1. The Hollow Brick
Specification: 390*190*190mm
Quality: the compressive strength can be more than 10 Mpa (the hollow block can add a certain
amount of fly ash and the proportion is about 30%).
2. Multiple-hole Brick
Specification: 240*115*90mm
Quality: the compressive strength is greater than 15 Mpa
3 Solid Brick
Specification: 240*115*53mm
Quality: the compressive strength is greater than 15 Mpa.
4. Colored Pavement Brick
Specification: 200 * 100 * 60 mm
Quality: the compressive strength can be greater than 30 Mpa

Device Configuration
concrete spreader
automatic discharging plate mixer
PLC electronic control system
ayer pallet  mixer
hydraulic system
secondary concrete spreader
part of host computer
automatic palletizing machine
automatic unloader machine
electronic batching station
loading machine
cement silo

Technical Parameters

Technical parameters
Dimensions of main frame(L*W*H)	8100*2000*3000mm
Molding height	50-190mm
System pressure	25Mpa
Virbration forcement	100KN
Dimension of pallet	1150*950*30mm
Whole weight	17000KG
Molding cycle	15s
Power of main frame	41KW


Capacity

Bloc sample	Size	Pieces/time	Pieces/H	Remark
Hollw block	390*190*190mm	10	2400	8hours/day 300days/year
Multi-row perforated brick	240*115*90mm	24	5760
Standard block	240*115*53mm	48	11520
Pavment brick(single color)	200*100*60mm	0.72 m2	108 m2

The device uses automatic computer system control, increased the frequency converter, PLC imported from Germany, the stability of the equipment program near perfect. Through continuous improvement, dynamical force and vibration frequency of the vibration increases, with unique hydraulic and auxiliary systems, the product of perfect combination of
Density and intensity.
Produced a substantial increase to make up the unburned brick pressure currently on the market is not enough. The unburned quality questioning the shortcomings. Replace the mold of the equipment can produce various models of size of hollow block and brick of standard, to achieve the effect of a multi-purpose machine, eliminating the need you want to increase the equipment caused by the waste of money to produce different products.



1. Loader. 2Concrete Mixer. 3Cement Silo4 Ingerdients conveyor machine5 Fabric Machine
6. Automatic forming machine. 7PLC control system8 Pallet outed machine10Automatic Stacker 11Forklift

2.1 Hydraulic system: Advanced dual hydraulic proportional control technology, the pressure and quantity of fuel of any branch of the hydraulic system can be conveniently controlled; Thus different raw materials can be used to the same high quality products;
2.2 Electrical control system: PLC intelligent process control with data input and output devices, to achieve the ideal human-computer dialogue. Control system also includes advanced security logic control and fault diagnosis system. Remote control is optional.
2.3 Material distributing system: Unique obligatory material distributing system ensures that the large amount fly ash material uniform.
2.4 Vibrating system: Special technology to optimize the layout of axial vibration, the vibration plate in the entire context of uniform distribution, thus greatly improving the consistency of product performance, stability.
