Product Specifications
| Prod Model: |
YCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Max Persistent Voltage: |
385/420V |
| Rated Voltage: |
220/380V |
| Install DIN Rail: |
35mm DIN Rail |
| Max Connecting Wire Diameter: |
35mm2 Hard Wire |
| Working Temperature: |
-40~+80 'c |
| Poles: |
1,2,3,4 |
| Operation: |
Electric Type |
| Function: |
Surge Protector |
| Arc-Extinguishing Medium: |
Air |
| Installation: |
Parallel Arrester |
| Brand: |
CNC |
| Certification: |
ISO9001-2000 |
| Type: |
Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
| Material: |
Reinforce Flame Resistance PA66 |
Product Description

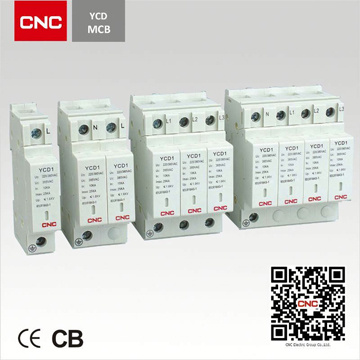

CNC China Famous Export Enterprise. National Project Supplier Surge Protector YCD SPD class c surge protection devices. (YCD)
Specifications
YCD SPD class c surge protection devices
1. HS Code: 85362000
2. Standard: IEC 60898
3. Number of pole: 1, 2, 3, 4 Pole
4. Rated voltage: 75, 110, 220, 380 V
5. Rated current: Maximum 40 KA
6. Productivity: 20, 000PCS/DAY
7. Min. Order: 5, 000PCS
YCD SPD class c surge protection devices
1. Type: YCD-B; YCD-C; YCD-D
2. General: When the power system suffered thunder of other reasons, it produces high frequency pulse voltage. The electrical equipment will be damaged. Especially with the large use of computer and microelectronic facilities, people have concerned the over protective device of low voltage power system. YCD surge protective device is the best product in terms of protection.
Appearance and mounting dimension: Protective device adopts 35mm Din rail type mounting appearance dimension see attachment.
Warning and counter function: Warning and counter(alarm) consists of optics alarm and thunder counter, the function as following:
AC 220v power supply for alarm, as the protector normal works that the pilot lamp is green, No contact is closed, NC contact is opened.
Acoustic optic alarm function: After the failure of protector mould, the buzzer, at the same time the green light change into red light. If you push the stop alarm button, the buzzer will pause (but red light continued), after 24 hours, if the trouble is not cleared, the buzzer sounds again.
Telecontrol function: The alarm is buzzing and it also can drop out close and cut off contact, for remote monitor.
Counter function: The alarm can display the protector's worktime, after push the stop button the numerals pipe appears the data of work time.
Self-inspection, zero function: Push stop button making current it can self-inspection and finish the numerals pope operating.
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
|
Type |
|
YCD-B |
YCD-C |
YCD-D |
|
Protection class |
|
B |
C |
D |
|
Rated voltage Un |
V |
220/380 |
380 |
220/380 |
220/380 |
|
Max persistant voltage Uc |
V |
385/420 |
385 |
420-550 |
385/420 |
385 |
385/420 |
385 |
|
Protection level UP |
kv |
≤ 1.5≤ 1.8 |
≤ 2.0 |
≤ 2.0-3.0 |
≤ 1.5≤ 1.8 |
≤ 2.0 |
≤ 1.5≤ 1.8 |
≤ 2.0 |
≤ 2.0 |
|
Standard discharge current (8/20μ S) In |
ka |
30 |
20 |
10 |
|
Max discharge current (8/20μ S) Imax |
ka |
70 |
40 |
25 |
|
Response time |
ms |
< 25 |
< 25 |
< 25 |
|
Working temperature |
° C |
-40~+80 |
-40~+80 |
-40~+80 |
|
Enclosure material |
Reinforce flame resistance PA66 |
Reinforce flame resistance PA66 |
Reinforce flame resistance PA66 |
|
Max connecting wire diameter |
mm 2 |
35mm 2 hard wire, 35mm 2 multi wire |
35mm 2 hard wire, 35mm 2 multi wire |
35mm 2 hard wire, 35mm 2 multi wire |
|
Max connecting wire diameter of long distance monitor terminal |
mm 2 |
1.5mm 2 hard wire |
1.5mm 2 hard wire |
1.5mm 2 hard wire |
|
Max fuse current |
A |
63-100 |
32 |
16 |
|
Install DIN rail |
35mm DIN rail |
35mm DIN rail |
35mm DIN rail |
