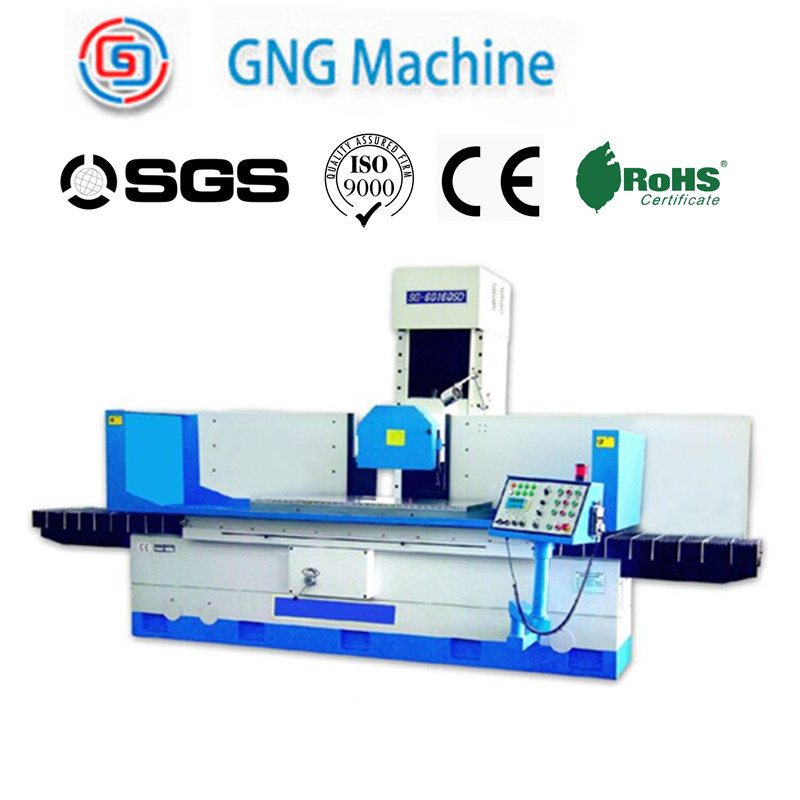

CNC Column Moving Surface Grinder

Name: CNC Column Moving Surface Grinder
Brand: china-manufacturer-directory.com
SKU: 699529592
Availability: InStock
Rating: 4.9 (97 reviews)

Supplier:	Qingdao G&G Machinery Company Ltd.
Price:	US $ 83063/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SG60330SD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size(Wxl):	610X3000(Mm)
Max. Grinding(Wxl):	610X3000(Mm)
Magnetic Chuck Size (Optional Equipment):	600X1000X3(Mm)
Speed Of Table Longitudinal Movement:	5-25m/Min
Power Source:	Electricity
Material:	Metal
Working Style:	High-speed universal
Type:	Sga PLC CNC Column Moving Surface Grinder

Product Description

SG SGA plc cnc column moving surface grinder
Item/Model		Unit	SG60330SD
Item/Model		Unit	SG60300CNC
table size(WxL)		mm	610X3000
max. grinding(WxL)		mm	610X3000
max. distance between spindle center line and worktable surface		mm	820/1050(925)
magnetic chuck size (optional equipment)		mm	600x1000x3
speed of table longitudinal movement		m/min	5-25
wheel head cross moving	auto feed	mm/t	1-30
	rapid speed	m/min	0.05-2
	hand wheel feed	mm/div	0.005
wheel head vertical moving	auto feed	mm/t	0.005-0.05
	rapid speed	mm/min	0.05-2
	feed of handwheel	mm/div	0.005
wheel	speed	rpm	960(1450)
wheel	size(ODxWxID)	mm	500x75x305(450x75x203)
motor of spindle		kw	18.5
max. loading capacity of worktable with chuck		kg	2300
total rated power		kw	28.5

height of machine:2720/2920(mm)
floor space(LxW):8200x3000(mm)
gross weight: 12500 kg
