Product Specifications
| Prod Model: |
DL-1218 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
<0.003mm |
| Axis Drive System (X Y Z): |
Precision Ball Screw Rod |
| Spindle: |
Water Cooled Spindle |
| Driving Motor: |
Servo Motor |
| Type: |
Wood Process and Matching Equipment |
| Certification: |
CE |
Product Description

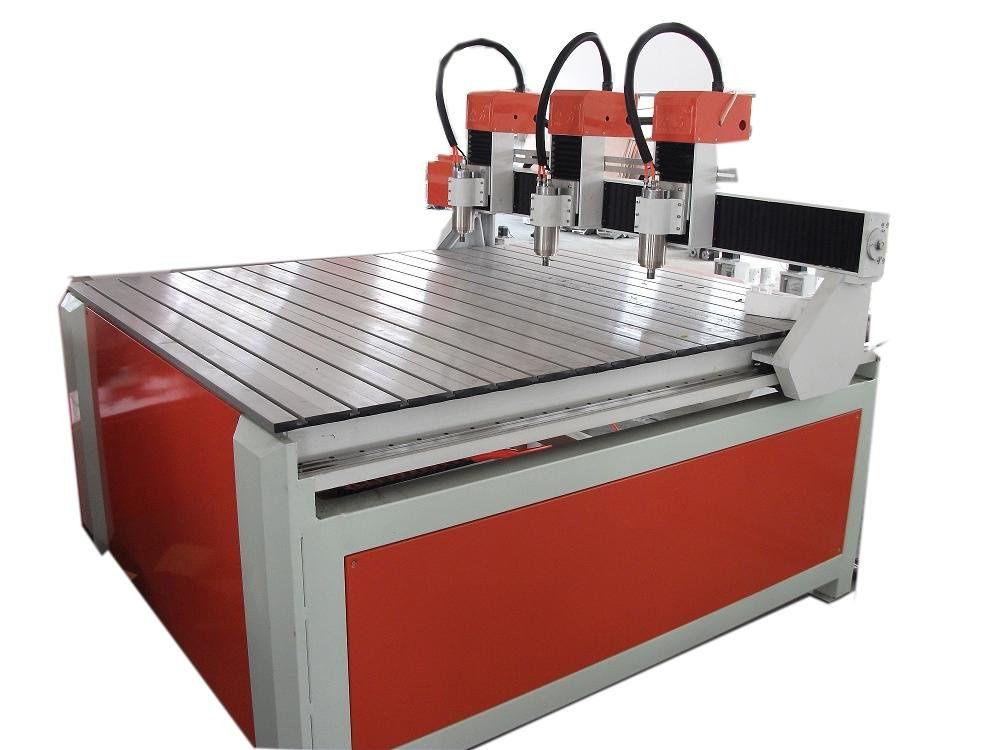

CNC Engraving Machine DL-1218(Multi-Spindle series)
1). Brushless water cooled spindle
2). Imported square linear guide rail
3). Memory on break point
CNC Engraving Machine DL-1218(Multi-Spindle series)
Product feature
1. Multi-spindle can be processed at the same time and also be used solely. The machine with multi spindle raises the multiple efficiencies compared to the machine with one spindle. And it is economical and practical.
2. It may use one spindle to process the large-scale work piece solely instead of other spindles.
3. Adopts the imported ball screw rod with high precision, it may play down the clearance to the smallest which is produced in the course of movement and make the precision and orientation more accurate.
4. Imported line guide rail makes all sides of machine bear equally, which guarantees the precision and intensity of machine.
5. Adopts the way of memory on break of point, which guarantees continuous processing in the condition of suddenness, such as break cutter, and interval of days.
6. The machine is moving just like a gantry, the lathe is cast wholly, it is firm and durable, the machine will not deform after long playing use.
7. It may customize multi spindle according to the requirements of clients, the table of the machine can be customized.
CNC Engraving Machine DL-1218(Multi-Spindle series)
Applications
The products have been widely used in advertisement gifts, crafts industry, model processing industry, architecture, seal, woodcutting, stonework, decoration, and habiliment machining, and other areas.
|
Model |
CNC Engraving Machine DL-1218(Multi-Spindle series) |
|
Working Zone: (X Y Z) |
1200× 1780× 110mm |
|
Table Size (W× L) |
1420× 2120mm |
|
Resolution |
< 0.003mm |
|
Cutting Accuracy |
± 0.02/300mm |
|
Repositioning Accuracy |
± 0.01mm |
|
Axis Drive System (X Y Z) |
Precision Ball screw rod |
|
Drive Type |
Servo motor |
|
Spindle |
1.5KW liquid-cooled with 24, 000rpm, VFD |
|
Max. Working speed |
10, 000mm/min |
|
Collets Type |
3.175mm/ 4mm/ 6mm |
|
Command Code |
G*. u00*. mmg*nc., HPGL |
|
Operational System Software |
Type 3/Artcam/Castmate/Wentai |
|
Control System |
NC studio |
|
Interface |
PCI/USB |
|
Max. Power Consumption |
2.3KW |
|
Voltage |
AC220V± 10%/50~60Hz |
|
Standard Work Surface |
Aluminum profiles |
|
Weight |
510kg± 10% |
|
Warranty |
12 Months (spindle: 6 months) |
