| Price: | US $ 1-250000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
So simple to operation, designed to be more friendly and humanized, so you can use the machine very easily.

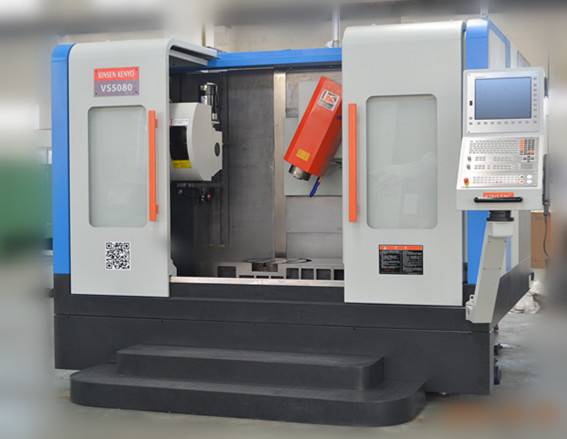

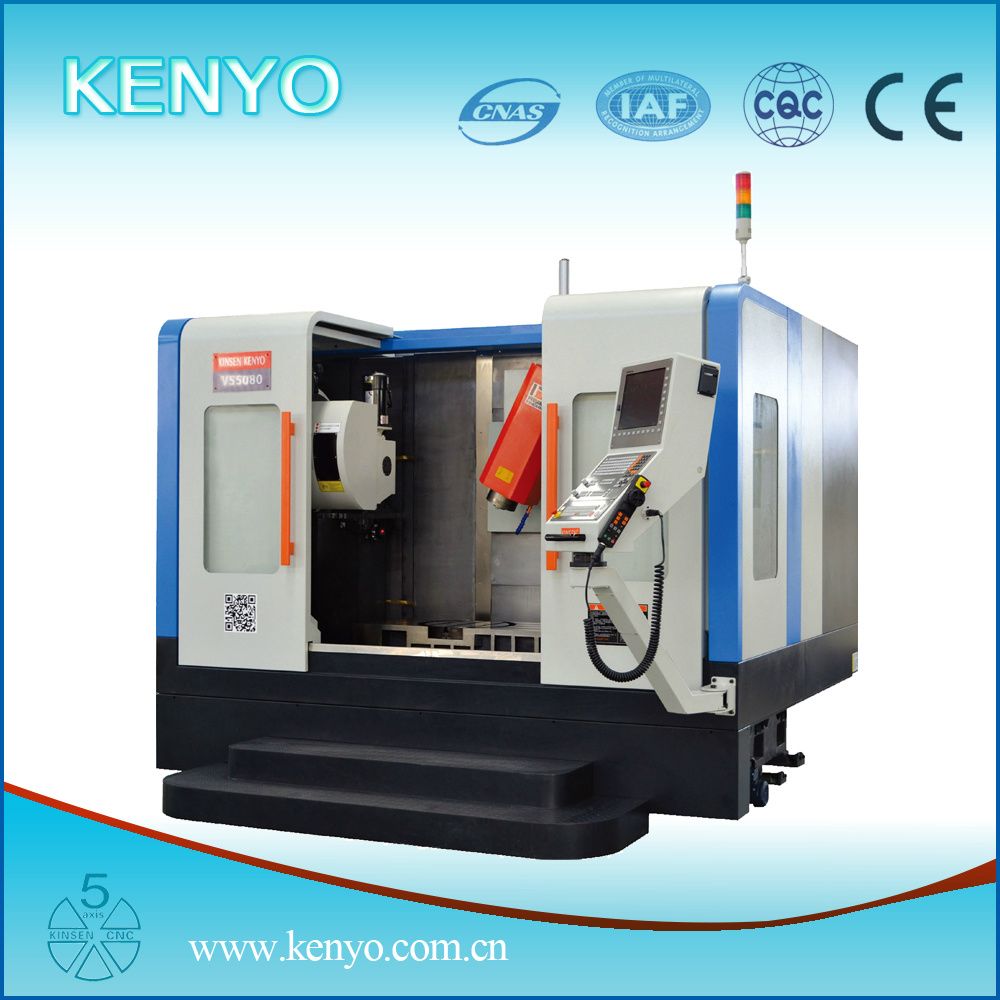

| Item | VS5080 |
| Table size(mm) | 500×1200 |
| X/Y/Z travel(mm) | 800×500×500 |
| Diameter of in NC rotay table(C axis) | 250 |
| Rotary table hydraulic clamping force | ≥1000NM |
| Swivel milling head hydraulic clamping force | ≥1000NM |
| Max.table loading(Kg) | 600 |
| Distance from spindle nose to table surface(mm) | 140---640 |
| Spindle type | BT40 |
| Spindle diameter | 170mm |

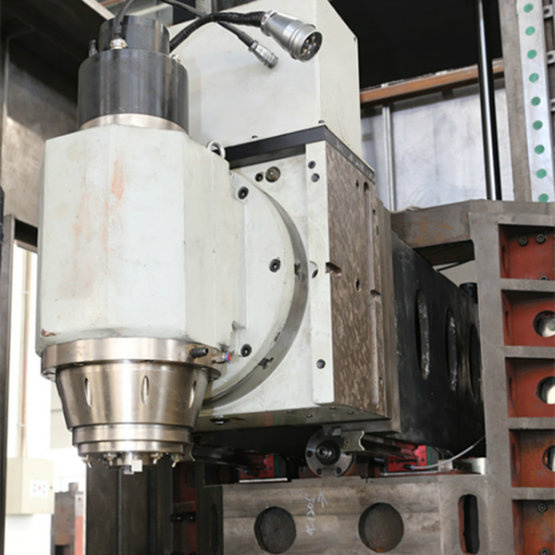

| Spindle swivel angle | ±110° |
| Tool magazine type | BT40 |
| Tool magazine capacity | 24 |
| Spindle speed(r/min) | 9000 |
| Spindle braking time | ≤4S |
| Spindle power(kw) | 12 |
| Ball screw | HIWIN |
| Coupling | KTR |
| Spindle | Hesheng |
| Ballscrew support bearing | NSK |
| Positioning accuracy(mm) | X:0.01 |
| Y:0.01 | |
| Z:0.01 | |
| C axis:0.002°C | |
| B axis:0.002°C | |
| Repeatability(mm) | X:0.006 |
| Y:0.006 | |
| Z:0.006 | |
| C axis:0.0015° | |
| B axis:0.0015° | |
| Parallelism between X axis and B axis(swivel to any angle) | ≤0.02 |
| Rapid Traverse speed(mm/min) | ≥15000mm/min |
| Cutting federate | ≥1--8000mm/min |
| Machine cover | totally closed |
| Lubricantion system | automatic |
| Cooling system | Constant temperature oil cooled |
| Gross weight(Ton) | 8 |
| CNC system | Heidenhain/siemens840D/8055/GSk25i |
| Full-closed loop control | |
| Chip conveyor | Screw/chain plate |
Main Export Market
Canada, the U. S. A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U. A. E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on
Our factory
Since the establishment, our company has been committed to the innovation and development of CNC machines, constantly striving to build our own brands. We have developed T32, T36 and T40 CNC lathes, K7250, K714 and K715 CNC milling machines and V7250 machining centers.
In recent years, we have designed high-precision machining centers like VM850 and VM1060, VS655 milling machines and CLX400 inclined lathes. We have cooperated with Tsinghua University in the development of VS655 five axis milling machines and MMC740 high Vertical Machines. Our products were entitled as innovation products by Nanjing Science and Technology Bureau and Trade Commission of Jiangsu Province in 2008. Our company has more than 10,000 square meters of production area.
Our company has a strong technical force, professional fully-equipped technical team which are currently 30 professional R&D personnel, including a Ph.D.,8 Masters, accounting for 30% of R &D personnel. And more than 30 engineers and technicians engaged in research and development of new products, design and manufacturing, the enterprise has technological innovation and ability to promote the use of new technologies. Concentrating on R&D technology department, the professional departments collaboration, mainly engaged in the industry much-needed new technology, new methods and new equipment of research and development work research and development capabilities, education high-level, with rich practical experience of senior engineers and project engineers and technical personnel, is bring together a combination of a reasonable age structure of the technical team. In order to grasp the opportunity of CNC machine tools Market quickly, our company has cooperate with Tsinghua University. Jiangsu University, and jointly collect the market and facilitate R&D. Scientific research institutions of its technological capability to build a leading technology, high-performance products.
| Prod Model: | VS5080 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Machinig Lathe: | 5 Axis CNC Machine Center |
| Place Of Origin: | China (Mainland) |
| CNC Or Not: | CNC |
| Travel: | 800*500*500 |
| Max. Swing Diameter: | 450mm |
| Weight: | 8t |
| Automatic Grade: | Automatic |
| Spindle Speed: | 30-3500 |
| Guarantee: | One Year Guarantee |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Closed-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | Mid-Range CNC Machine Tools |
| Processing Precision: | 0.01 |
