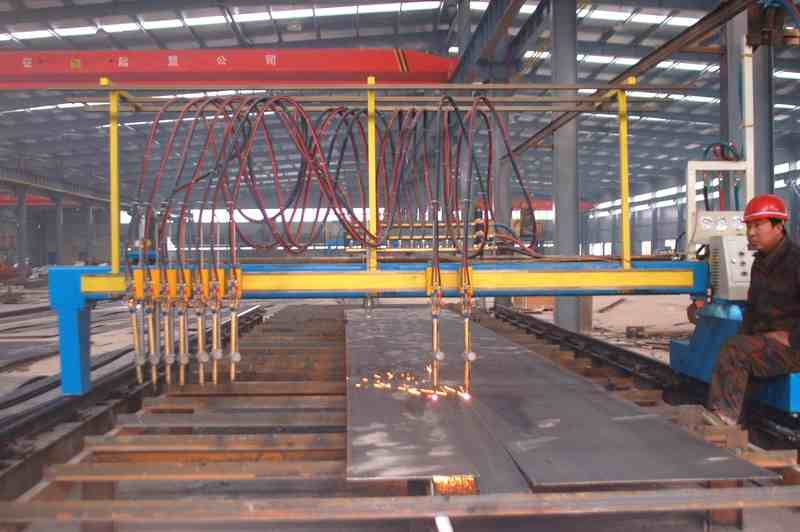

CNC Flame Cutting Machine

Name: CNC Flame Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 707079115
Availability: InStock
Rating: 5 (44 reviews)

Supplier:	Jiangsu Soho International Group Wuxi Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

CNC flame cutting machine, also known as CNC flame cutter, is mainly designed to cut mild steel, high carbon steel, stainless steel, aluminum, copper, and many other non-ferrous metals. And it is widely used in many fields, such as pipe production, automobile, shipbuilding, petrochemistry, war industry, metallurgy, aerospace, boilers, pressure vessels, locomotives, and so on.

Features of CNC Flame Cutting Machine:
1. Our CNC flame cutter features high rigidity, high precision, stable and reliable performance, easy maintenance, etc.
2. All components of this cutter have undergone annealing, polishing, and painting.
3. It can be installed with plasma cutting torch.
4. The lifting device of its cutting torch can be elevated by the ball guide rail automatically or electrically.
5. There is also autoignition function in it.

Model	Driving form	Rail gap (mm)	Effective width (mm)	Cutting thickness(mm)		Cutting speed(mm/min)		Max speed (mm/min)	Vertical range (mm)
Model	Driving form	Rail gap (mm)	Effective width (mm)	Flame cutting	Plasma cutting machine	Flame cutting	Plasma cutting	Max speed (mm/min)	Vertical range (mm)
CNCI-2500	Single side	2500	1600	6-200 (Refer to the performance of the cutting head)	Varies with different models	100-750 (Refer to the performance of the cutting head)	Varies with the power supply	6000	200
CNCI-3000	Single side	3500	2100					6000	200
CNCI-4000	Single side	4000	3100					12000	200
CNCII-4000	Double side	4000	3100					12000	200
CNCII-5000	Double side	5000	4100					12000	200
CNCII-6000	Double side	6000	5100					12000	200
CNCII-7000	Double side	7000	6100					12000	200
CNCII-8000	Double side	8000	7100					12000	200
CNCII-9000	Double side	90000	8100					12000	200
CNCII-11000	Double side	11000	10100					12000	200
CNCII-12000	Double side	12000	11100					12000	200
CNCII-13000	Double side	13000	12100					12000	200

Model	Driving form	Rail gap (mm)	Effective width(mm)	Cutting thickness (mm)	cutting speed (mm/min)	Max speed (mm/min)	Vertical range (mm)
CNC-3000	Single side	3000	2100	6-200 (Refer to the performance of the cutting head)	100-750 (Refer to the performance of the cutting head)	6000	150
CNC-3500	Single side	3500	2600			6000	150
CNC-4000	Single side	4000	3100			12000	150
CNCII-5000	Double side	5000	4100			12000	150
CNCII-6000	Double side	6000	5100			12000	150
CNCII-7000	Double side	7000	6100			12000	150
CNCII-8000	Double side	8000	7100			12000	150
CNCII-9000	Double side	9000	8100			12000	150
CNCII-10000	Double side	10000	9000			12000	150
CNCII-11000	Double side	11000	10100			12000	150
CNCII-12000	Double side	12000	11100			12000	150
CNCII-13000	Double side	13000	12100			12000	150

Jiangsu Soho International Group Wuxi Co., Ltd was established in 1995. As a member of Jiangsu Soho International Group (which is one of the Chinese 200 largest export enterprises), we are based on the industrial development and mainly deal in foreign trade with stable operation. The total sales amount of our company was over 60 million US dollar in 2008. And now we have a steady upward growth in sales every year.
Our products include all kinds of welding and cutting equipment. Our products are regularly exported to European Union, Japan, South Asia, and the Middle East.
