CNC Gas Cutting Machine

Product Specifications

Prod Model:	ZLQ-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:	Hypertherm Start-2000 Wuhan LAN Sun-IV Lansun V
Working Mode:	Untouched Arc Striking
Interface:	USB
Power Supply:	Hypertherm Powermax1650 Kliby Fine Focus450 China
Plasma Generator Power:	65A 85A 120A 200A for Much Thickness Cutting
Material Cutting:	Steel Iron Cooper Aluminum Stainless Metal Sheet
Software Nesting:	Fastcam Intergnps Nesting Software
Cutting Gas:	Oxy& Acetylene/Propane
Certification:	CE&ISO
Transmit Way:	Taiwan Imported Ball Screw
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	High-End CNC Machine Tools
Numerical Control:	NC
Movement Method:	Contour Control
Control Method:	CNC

Product Description

Gas cutting machine

Features

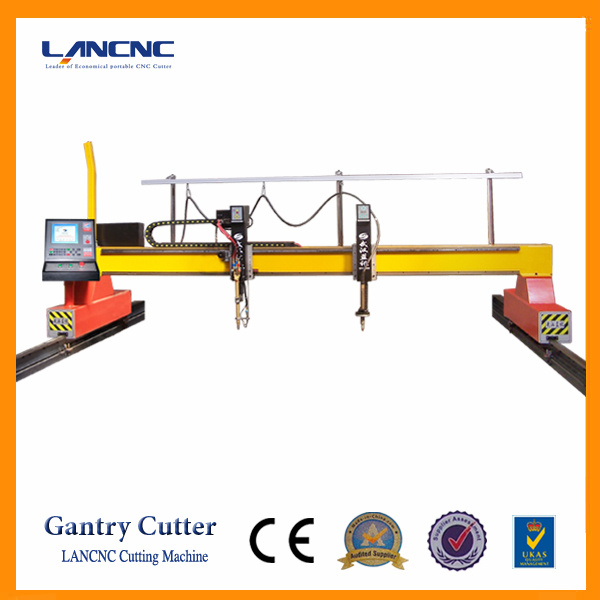

This model is gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional according to users' requirement, also can be configured as abnormity cutting and strip cutting. Control system adopts industrial computer; Draw CAD figures on the scene; Figure tracking function when cutting.

Application

It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Tech Data
