CNC Lathe Machine/China CNC Lathe Machine Tools (CK6140B)

Name: CNC Lathe Machine/China CNC Lathe Machine Tools (CK6140B)
Brand: china-manufacturer-directory.com
SKU: 695685442
Availability: InStock
Rating: 5 (77 reviews)

Supplier:	Taian Crystal Machinery Co., Ltd.
Price:	US $ 10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	CK6140B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cast Iron
Place Of Origin:	China
Processing Type:	Metal
X,Z Motor Type:	Servo Motor
Power Supply:	Three Phase 380V/50Hz
Warranty:	1 Year
Type:	Horizontal Lathe
Automatic Grade:	Semiautomatic
Precision:	High Precision
Power Source:	Electric
Setting Mode:	Floor-type
Controlling Mode:	CNC
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe

Product Description

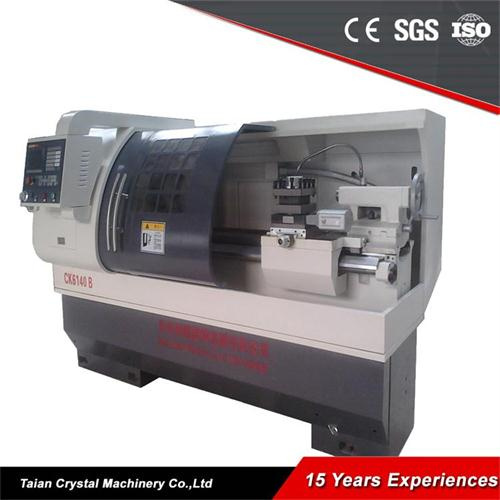

CNC  Lathe Machine CK6140B*750

A. CK6140B configuration

1.  2 gears

2  Frequency conversion step-less speed regulation

3.  CNC system:GSK928TD-L

4.  Automatic electronic pump lubrication

5.  3-jaw chuck(10')

6  4-station electrical tool carrier

B. Specifications of Lathe Machine

Items	Specifications
Max. swim over bed	Φ400mm
Max.swim over carriage	Φ245mm
Max.length of work piece)	750mm
Size of three-jaw chuck	Φ250mm
Range of spindle speed	150~500 320~1600rpm (2 gears)
Spindle bore	Φ52mm
Taper of spindle bore	MT5
stations of tool carrier	4/6/8/
Max.size of tool post	25×25mm
Min.setting unit of motor	(Z) axis 0.001mm (X) axis 0.001mm
Moving speed of post	(Z) axis 8 m/min (X) axis 6m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	5.5KW
Packing size (mm)	2050mm×1400 mm×1650mm
Net weight	2100kg

C. Instructions of Other Devices

Brands of standard configuration of CNC	GSK and KND
Structure style of spindle	Independent spindle, frequency control
Protective cover and door	metal plate cover and double protective door
Position of CNC system	on the left side, revolving move
lighting system	standard T8 fluorescent lamp
Cooling system	water cooling
Lubrication system	automatic lubrication controlled by microcomputer
Brands of motor-driven tool carrier	Hongda and Sanhe
Type of cabinet base	separated type

D. Peculiar Setup

Optional brands of CNC systems	SIEMENS,FANUC
Optional types of the tool post	horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic Bar feeding(Customized programs alone)

Our Services
1. one year guarantee for whole machine
2. 24-hours technical support by E-mail or telephone
3. Provide extra accessories for the machine
4. Also provide service of make program according to your drawings
5. Customized or special design is OK.

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER. With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production.

For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification. Welcome to contact with us to make building! !
