Product Specifications
| Prod Model: |
GREAT-130iTC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Task: |
Program |
| Structure: |
Open-Loop |
| Mathematical Model: |
Non-Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
ISO: 9001 |
| Condition: |
New |
| Customized: |
Non-Customized |
| Material: |
Stainless Steel |
Product Description

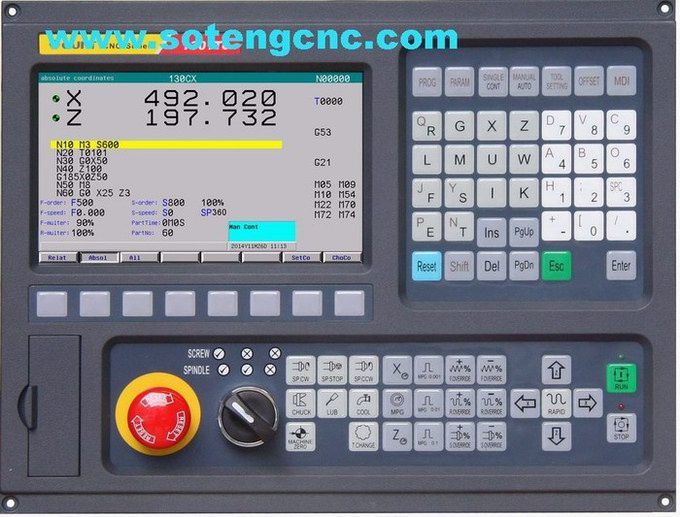

CNC Controller Mini for Lathe:
*Control axis: 2 axes
CNC LATHE SYSTEM----130iTC
*linkage axis: X, Z axis
*32 bits 200MHz ARM industrial processor
*32MB user memory
* Resolution is 800 x 480; 7 inch TFT LCD display
* Real-time and all-round self-diagnosis function
* Feed per minute, feed per revolution
* Metric system, English system input mode
*linear, circular, thread interpolation command can machine metric/inch single/multi-thread, taper thread, arc thread, end-face thread, variable pitch thread, continual thread.
* Multiple compound cycle instructions, such as ex-circle rough turned compound cycle, head face rough turned compound cycle, complex type outline rough turned compound cycle, outer diameter/inside diameter /grooving compound cycle, thread cutting compound cycle etc
*Automatic backlash compensation and storage type pitch error compensation. Tool auto compensation function, tool tip radius C tool compensation function.
*Set the max speed and up-down speed of each axis independently.
*Shift of programmed unit between metric and British mode
*Setting of auxiliary axis' angle and displacement programming.
*Multiple coordinates system setting.
*Soft and hard limit function to ensure safety operation of feed axis
*English/Chinese interface are available
*Display information of current time, booting time, single piece time and running time etc
*Multiple interpolation function and M, S, T function.
*Parameter, software backup and upgrade function.
SPECIAL ADVANTAGE
>SPEED
*Max rapid traverse: 20m/min
*Max cutting speed: 10m/min
*Program preview function, realizing and seamless connectivity of program blocks
>PRECISION
*Screw pitch compensation, improving machining precision to the most
>INTERFACE
*USB port, RS232 port supply DNC function
*MPG on board or handy MPG are available.
*Dual channel control of spindle speed, can control two spindle units
>OPERATION
*Full-screen editing interface and foreground-background processing operation, which can do programming, parameter adjustment etc at the same time
*graphic preview or simulating operation before machining, coordinates and graphic display can shift freely
*Multilevel password protection, such as program, parameter protection to convenient equipment management
*Start machining at random block or tool number
* spindle speed and feeding speed can adjusted during operation.
*Compatible with popular international CNC system in instruction code and most program can be run directly without amendment
| G code | Group | Function |
| G00 |
01
| Rapid positioning |
| G01 | Linear interpolation |
| G02 | Circular interpolation (CW)/spiral interpolation |
| G03 | Circular interpolation (CCW)/spiral interpolation |
| G33 | Thread cutting |
| G04 | 00 | Dwell |
| G20 |
06 | Input in inch |
| G21 | Input in mm |
| G28 |
00
| X, Z Return to reference point 1 |
| G281 | X Return to reference point 1 |
| G283 | Z Return to reference point 1 |
| G26 | Z, X return to program starting point |
| G261 | X return to program starting point |
| G263 | Z return to program starting point |
| G40 |
07
| Cutter radius compensation cancel |
| G41 | Cutter radius compensation left |
| G42 | Cutter radius compensation right |
| G60 |
15 | Exact stop positioning |
| G64 | Continuous path machining |
| G77 |
09 | Cylinder/taper inside(outer) radius cutting canned cycle |
| G78 | Thread cutting canned cycle |
| G79 | End face cutting canned cycle |
| G70 | Finish turning cycle |
| G71 | Excircle rough turning composite cycle |
| G72 | End face rough turning composite cycle |
| G173 | Outline rough turning composite cycle |
| G174 | End face hole composite cycle |
| G175 | Outer/inside diameter drilling/grooving composite cycle |
| G176 | Thread cutting composite cycle |
| G90 | 03 | Absolute programming |
| G91 | Incremental programming |
| G92 | 00 | Set workpiece coordinate system |
| G94 |
05 | Per minute feed |
| G95 | Per revolution feed |
| G96 |
08 | Constant cutting |
| G97 | Constant cutting cancellation |
| G22 |
19 | Program cycle instruction |
| G800 | Program cycle instruction cancellation |
