Hebei Leader Imp. & Exp. Co., Ltd. >> CNC Machine Tools (Flash SL280)

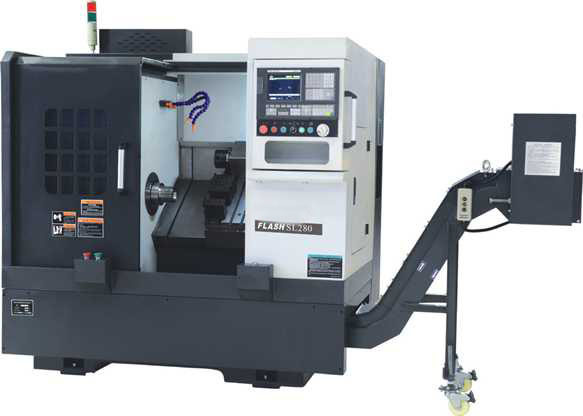

CNC Machine Tools (Flash SL280)

Name: CNC Machine Tools (Flash SL280)
Brand: China-Manufacturer-Directory.com
SKU: 776170905
Availability: InStock
Rating: 4.3 (46 reviews)

Supplier:	Hebei Leader Imp. & Exp. Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	Flash SL280
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chuck Size:	6''
Max. Swing Dia. Over Bed:	420
Max. Length Of Workpiece:	200
Spindle Bore:	48
Max. Bar Capacity:	40
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Semi-Closed Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools
Processing Precision:	0.01mm

Product Description

Technical specifications	Unit
Model	N/A	Flash SL280
Chuck size	inch	6''
Max. swing dia. Over bed	mm	420
Max. length of workpiece	mm	200
Max. swing dia. Over slide	mm	140
Spindle bore	mm	48
Max. bar capacity	mm	40
Spindle speed	rpm	3000
Main motor power	kW	3.7/5.5
X axis stroke	mm	280
Z axis stroke	mm	240
X/Z rapid traverse	m/min	28/28
Turret type	N/A	Gang type tools
No. of tool stations	N/A	4-6
Tool shank size	mm	20X20
Type of tailstock	N/A	No tailstock
Slant bed degree	N/A	35°
Guideway type	N/A	LM
Power capacity	KVA	11
Overall dimension	mm	1750X1320X1500
Weight	Kg	1800

Standard Features :
Hydraulic 3 jaw chuck
8stations turret
Auto lubrication system
Hydraulic tailstock

Hebei administration for Industry and Commerce Ministry approved the scope of our business are:

Hebei Leader IMP. &EXP. Co., Ltd. is an expert foreign trade enterprise, established based on the entity of BAODING HONGYE CLOTHES Co., Ltd., approved by COMMERCE DEPARTMENT of PRC, own import and export right, main business is import, export, and IMP. & EXP. Agency.

Now corporation has 15 business departments, 1 customer service department and 1 financial department. Main business departments are mechano dept., electronic dept., hardware&electric material dept., computer/softwear dept., apparel and textiles dept., daily necessities dept., Crafts gifts dept., household appliance dept., office supplies, education articles dept., sports and keep-fit equipment, farm and livestock products dept., minerals dept., building materials dept., green envrionmental protection dept...

The customer service department of company build a set of complete international trading runs systerm, integrated IMP. &EXP. Business, make documents, commodity inspection, customs clearance, Transportation, settlement of exchange of drawback, etc. Supporting services of modern logistics operating platforms.

The aim of company is care for integrity, trying our best to offer first class products, high quality and efficient and professional service and strong technical support for friends which from home and abroad.
