Hebei Leader Imp. & Exp. Co., Ltd. >> CNC Machine Tools (SUPER P20H)

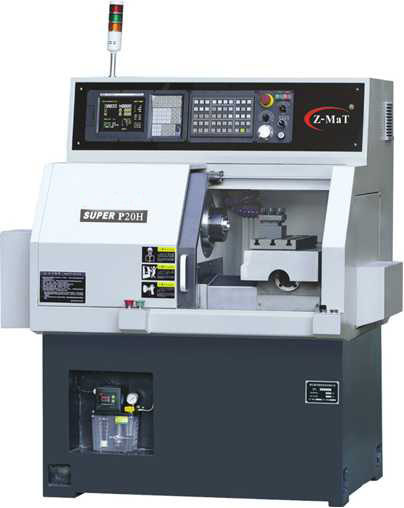

CNC Machine Tools (SUPER P20H)

Name: CNC Machine Tools (SUPER P20H)
Brand: china-manufacturer-directory.com
SKU: 776182875
Availability: InStock
Rating: 4.6 (88 reviews)

Supplier:	Hebei Leader Imp. & Exp. Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	SUPER P20H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chuck Size:	Pneumatic Collet
Max. Swing Dia. Over Bed:	280
Max. Length Of Workpiece:	180
Max. Swing Dia. Over Slide:	80
Spindle Bore:	36
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Semi-Closed Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools
Processing Precision:	0.01mm

Product Description

Technical specifications	Unit
Model	N/A	SUPER P20H
Chuck size	N/A	Pneumatic collet
Max. swing dia. Over bed	mm	280
Max. length of workpiece	mm	180
Max. swing dia. Over slide	mm	80
Spindle bore	mm	36
Max. bar capacity	mm	30
Spindle speed	rpm	5500
Main motor power	kW	2.2/3.7
X axis stroke	mm	250
Z axis stroke	mm	180
X/Z rapid traverse	m/min	20/20
Turret type	N/A	Gang type tools
No. of tool stations	N/A	4-6
Tool shank size	mm	16X16
Type of tailstock	N/A	No tailstock
Guideway type	N/A	LM
Power capacity	KVA	6.5
Overall dimension	mm	1420X1200X1550
Weight	Kg	1400

Standard Features :
Hydraulic 3 jaw chuck
8stations turret
Auto lubrication system
Hydraulic tailstock
