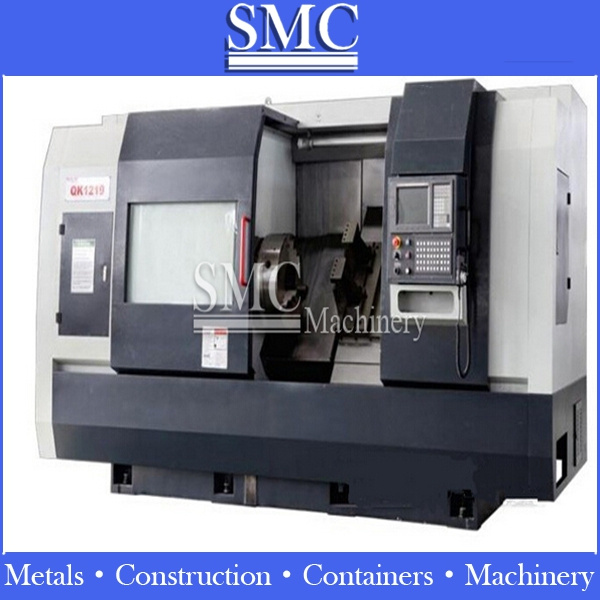

CNC Pipe Threading Lathe (Bending Machine)

Product Specifications

Prod Model:	10.68463.0000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Customized
Guide Rail:	Customized
Automatic Grade:	Customized
Precision:	Customized
Power Source:	Customized
Setting Mode:	Customized
Controlling Mode:	Customized
Processing Accessory:	Customized
Tool Holder:	Customized

Product Description

Introduction of CNC Pipe Threading Lathe:
CNC pipe threading lathe is designed for threading of pipe work in petroleum industry. It is efficient and of special purpose. The lathe is equipped with front-and-rear mounted double chuck. That structure ensures steady and reliable clamping of long pipe work. It is equipped with comb type tool rest that holds compound tools which make it an ease for machine to performance external and internal turning, facing, threading, outside and inside chamfering operations on pipe or hoop. In a word productivity and quality are enhanced and reliability is increased in a great deal.

Item	Specifications	Dimensions	Unit
Working range	Max. Swing over bed	Φ600	mm
	Max. Swing in gap	Φ280	mm
	Max.Work piece length	600	mm
	Max. Coupling diameter	Φ340	mm
	Max.Pipe diameter	Φ190	mm
Spindle	General chuck/hydraulic chuck diameter	Φ500/530	mm
	Spindle center height	1120	mm
	Spindle bore	Φ196	mm
	Spindle bearing diameter	Φ260/Φ240	mm
	Spindle speed	150-800	r/min
	Spindle power	22/30	kw
Bed saddle	Bed incline	60°	DEG
	Distance	340/650	mm
	Rqpid feed X/Z	8/12	m/min
	Servo motor X/Z	20/20	Nm
	Diameter of ball-screw X/Z	Φ40/Φ50	mm
Tool	Magazine capacity	2/4
	Toolsize(turning/boring)	32x32/Φ80	mm
Other	Power	60	kva
	Overall dimensions (LxWxH)	3650x1810x1950	mm
	Net Weight	8200	kg
	Gross Weight	8500	kg
