Product Specifications
| Prod Model: |
DL-1325/DL-1330 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Table: |
1300mm*1330mm |
| Processing Thickness: |
0.5-10mm |
| Driving Motor: |
Step Motor |
| Cutting Precision: |
0.1mm |
| Reset Precision: |
0.01mm |
| Engraving Speed: |
100-10000mm/Min |
| Current Plasma: |
60A/100A |
| The Mode Of File Transfer: |
USB |
| Working Method: |
Untouched Arc Striking |
| Voltage: |
AC380V/50-60Hz |
Product Description

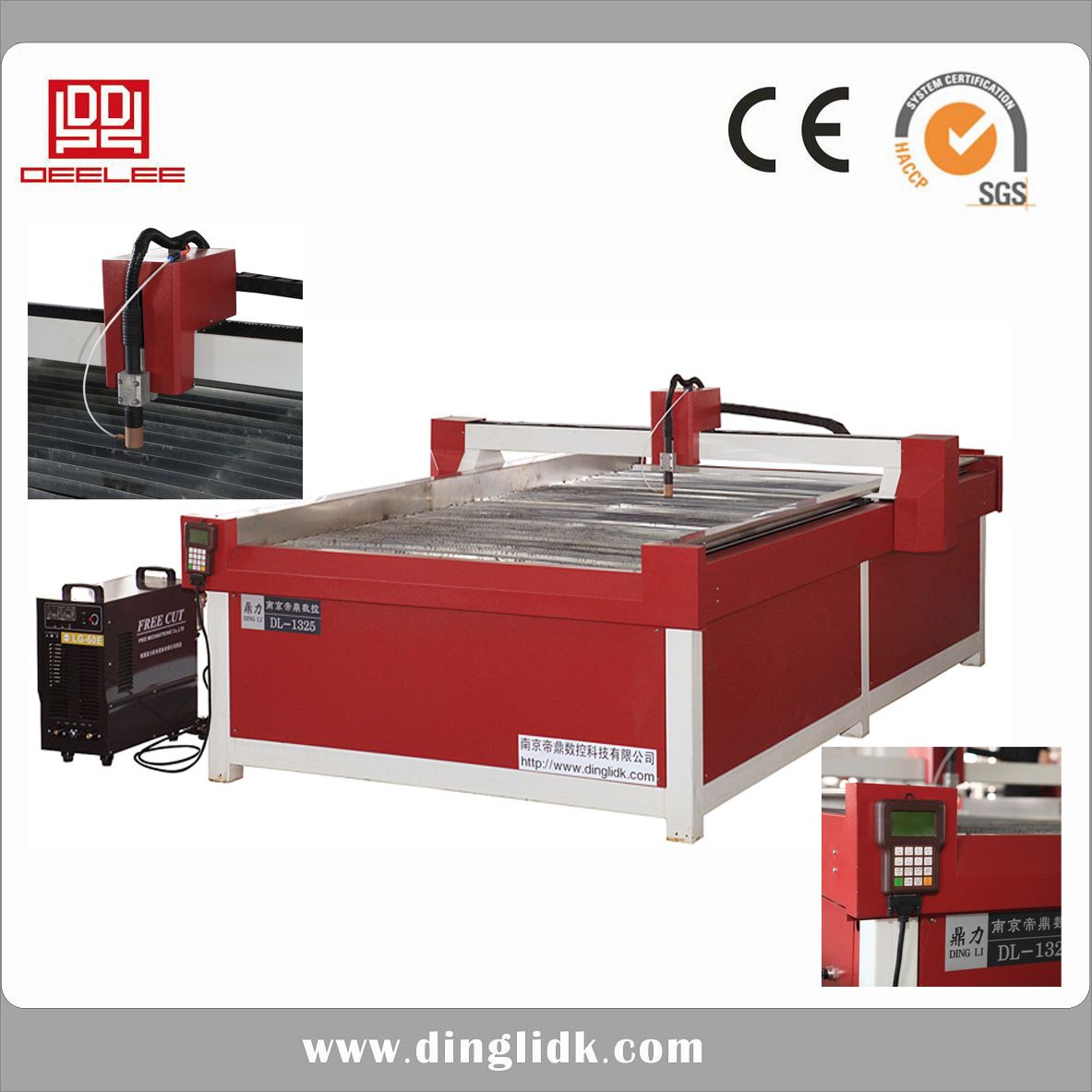

DL-1325 Plasma Cutting Machine
This best plasma CNC metal cutting machine has the following features:
1. The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3. Auto arc starting. Steady performance
4. DSP control system
5. Adopting Y axis used dual- stepper motor and double ball screw rod driven, X make the machine driving smoothly with high-precision.
6. High-speed stepper motor(Hybrid servo motor & Panasonic servo motor for option)
7. FREE CUT plasma power supply(Hypertherm for option)
8. High cutting speed, max amounting to 10m/min
9. Can be customized according to your requirements
10. Cutting material: Steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on
Main Specifications
CNC Plasma Cutting Machine DL-1325
1. Y axis adopt double motor
2. Y aixs adopt dual-ball screw rod
3. Start control system
DEELEE CNC Plasma Cutting Machine DL-1325
MODEL
|
CNC Plasma Cutting Machine DL-1325
|
Working Area
|
1300×2500mm
|
Processing thickness
|
0.5-10mm
|
Cutting precision
|
±0.1mm
|
Reset precision
|
±0.01mm
|
Engraving speed
|
100-10000mm
|
Current Plasma
|
60A
|
|
Interface |
USB |
Working method
|
Untouched arc striking
|
Max.Power Consumption
|
8.5KW
|
Voltage
|
AC380V±10%/50-60Hz
|
Net Weight
|
800kg±10%
|
Plasma Current
|
Cutting Thickness
|
45A
|
6-10mm
|
60A
|
10-13mm
|
80A
|
10-16mm
|
100A
|
12-19mm
|
