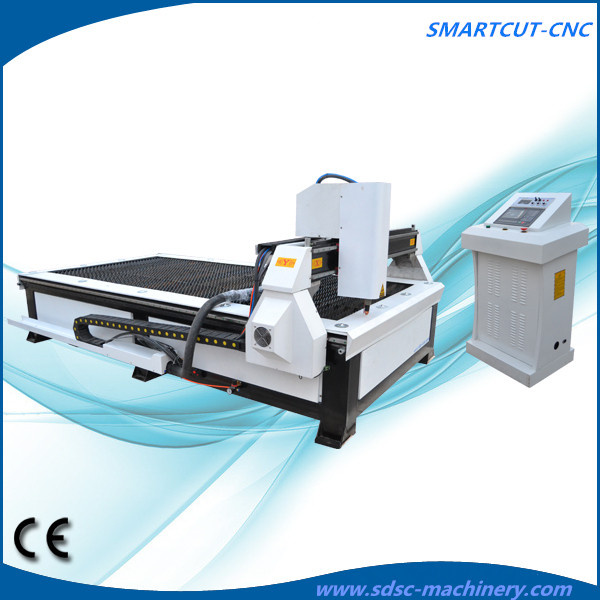

CNC Plasma Table Cutting Machine

Product Specifications

Prod Model:	SMART CUT SCT-1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Smart Cut:	Bench Type Cutting Machine
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools

Product Description

BENCH TYPE CUTTING MACHINE

Place of Origin: Shandong, China (Mainland)
Brand Name:         SMARTCUT
Model Number:    SCTP-1530
Color:    Blue/Black
Transmission Method: USB
Payment terms: T/T West union
MOQ:    1 set
Torch height Controller:  Automatic

1)  Cutting Area:1500x3000mm
2)  Cutting thickness:0.5-12.0mm (Depend on plasma power)
3)  Cutting speed:1-26.4m/min (depending on material thickness)
Max. working speed: 12.8 m/min both x- and Y-axis
4)  Precious linear round guide rail and linear guide rail
5)  CNC control system and 3 sets 750W AC servo motor driving system
6)  Weight: 1015 kg
7)  Dimension (L.W.H): 3200x1820x1500mm
8)  Power: 63/100 AMP adjustable (all the power can be put into use 100%)
9)  Firm and Stable stand, 80×80×6mm steel welding structure.
10)  The linear tolerance of two guides on X axis is less than ±0.05mm;
X and Y axis vertical tolerance is less than ±0.05mm;
