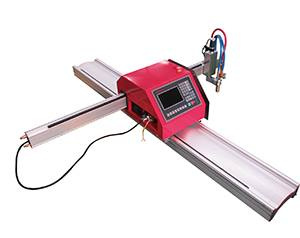

Portable Plasma Cutting Machine

Product Specifications

Prod Model:	smart cut portable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Smart Cut:	Portable Cutting Machine
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools

Product Description

I. Introduction
CNC SC Portable Cutting Machine is easy to move and operate. It's one of high cutting precision, powerful functions and good anti-interference ability.
The efficiency of the equipment is over that of three persons and the application of auto programming software improves the use ratio of materials.
Thus, our machine enables you to reduce factory cost and achieve quick returns with low investment.
Through the Auto programming software we present to you, the drawings made by Auto CAD/CAXA can be conversed directly to G-code. You can convert the cutting program-
copied in U disk - directly to the machine through the USB interface. You can also program directly by the control system.
The machine is also featured with re-cut, kerf compensation, auto slotting and memory of beak points etc.
II. Assembly

Items		CNC Portable Plasma & Flame Cutting Machine
Model		CNC SCP1530
Basic Assembly	Frame	Cantilever
	Lifting Station	1No
	Controller	SF-2012AH
	Cutting Mode	Flame & Plasma
Function Assembly	Type of Lifter	Motor Lifter
	Software	FastCAM(basic version with softdog & CD ROM)

III.Specification

S.N	Items	Parameters
1	Effective Cutting Area	1500x3000mm
2	Unload Speed	4000mm/min
3	Cutting Speed	Flame 50-700mm/min
4	Cutting Thickness	Flame 6-120 mm
5	Piecing Thickness	Flame <=60mm
6	Power Supply	220V±5%, 50Hz±1%
