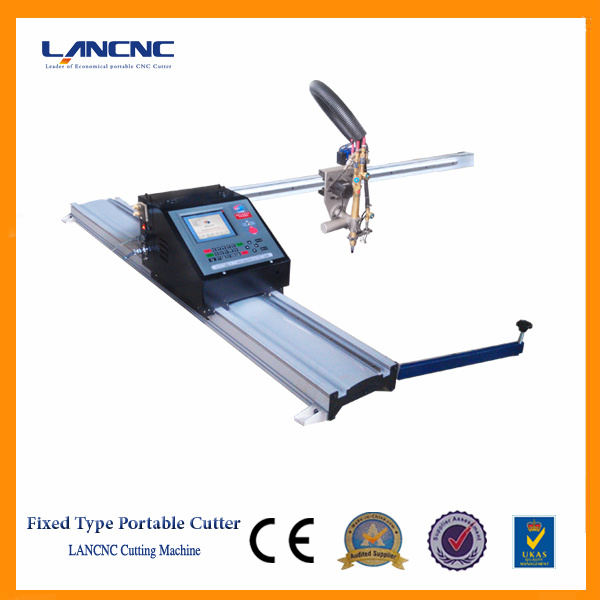

CNC Portable Cutting Machine (ZLQ-7)

Product Specifications

Prod Model:	ZLQ-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:	Hypertherm Start-2000 Wuhan LAN Sun-IV Lansun V
Working Mode:	Untouched Arc Striking
Interface:	USB
Power Supply:	Hypertherm Powermax1650 Kliby Fine Focus450 China
Plasma Generator Power:	65A 85A 120A 200A for Much Thickness Cutting
Material Cutting:	Steel Iron Cooper Aluminum Stainless Metal Sheet
Software Nesting:	Fastcam Intergnps Nesting Software
Cutting Gas:	Oxy& Acetylene/Propane
Certification:	CE&ISO
Transmit Way:	Taiwan Imported Ball Screw
Process Usage:	CNC Cutting Machine
Performance Classification:	CNC Cutting Machine
Numerical Control:	CNC Cutting Machine
Movement Method:	Gear and Pinion
Control Method:	CNC Control

Product Description

Portable and lightweight. This cutter adopts single drive and lineal guide. It is small bodily movement type, can be put upon the metal plate to be cut, needn't fixed plant, operate easily.

Features:
1. The overall processing machine base, good stability, not deformed
2. Using beeline and single-slide lead rails, high accuracy
3. A detachable structural design for arm, convenient transportation and installation
4. Beautiful structure, coordination, light weight;
5. Machine base is made in steel.
6. The CNC control system has the following character:
1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;
2) 32M users program storage capacity can update to 64M;
3) In both English and Chinese interface conversion;
4) During plasma processing, auto-complete the speed control of the corner
5) Rich software features and practical flame / plasma cutting process;
6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) Dynamic graphics zoom in 1-8X, fixed point of automatic tracking;
8) Using USB Flash Drive reading procedure and timely upgrade software;
9) Built-in the rich graphics, makes programming easy to learn.

Application:
CNC Cutting Machine is widely applied in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive, metal cutting service, stainless steel cutting service, carbon steel cutting service, CNC plasma cutting service, CNC flame cutting service, etc.

Flame cutting is suitable for mild steel, high carbon steel plate.
Plasma cutting is suitable for stainless steel, aluminum, copper and other non-ferrous metal plate.

After-sale service and Guarantee:
1. After-sale service and maintenance
User can contact our after-sale department via phone or web (E-mail, MSN, Skype, etc), we ensure giving feedback within 24 hours. If problem can not be solved, we will send our engineers to solve on the scene.

2. Quality warranty.
The warranty is within 12 months after High Speed Portable Gas CNC Cutting Machine finish fitting and start running, during warranty, we provide free solution for problems caused by normal use, such as product quality, process precision, cannot cut normal material, etc After 12 months, we also supply the maintenance and just collect some basic fees.
