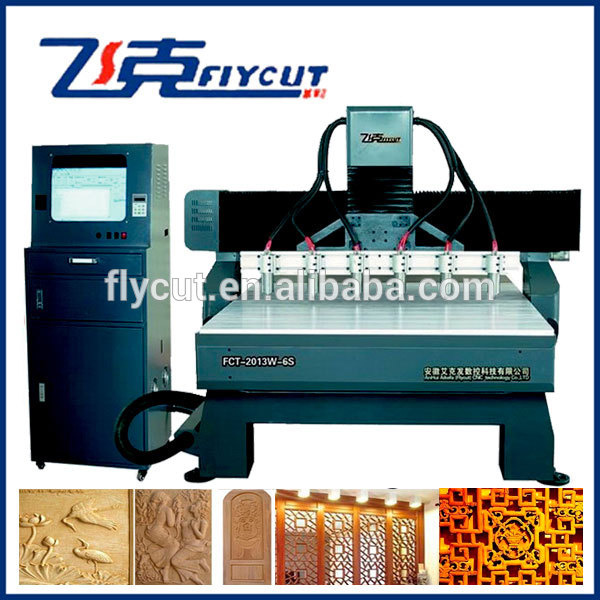

CNC Relief Machinery for Wood Processing 2013W-6s

Product Specifications

Prod Model:	FCT-2013W-6S
Markets:	North America,Southeast Asia,Mid East
Controlling Mode:	CNC
Feed Mode:	Mechanical
Spindle Number:	Double-Spindle
Spindle Layout:	Horizontal
Certification:	CE, ISO
Color:	Customized
Condition:	New
Customized:	Customized
Type:	CNC Wood Relief Machine

Product Description

Features:
1.The lathe is founded by industrial pipe welding,box-type structure to ensure the high stability.
2.The special instruments to eliminate welding stress,high precision machining planer ensure the precison and no deformation.
3.The major machine body makes the stability and no shacking in high speed.
4.XYZ all apply imported screw,high precision gear frame and linear square guide ,ensure the high accuracy.
5.The professional mechanical design,scientific structer and generou appearance,gantry height 200MM can ensure Z axis working size.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7.High quality driver motors, spindle motors, cables, inverters,etc.
8.High quality driver motors, spindle motors, cables, inverters,etc.

Applications:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.

Special Configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.



Technical Parameters:

Model	FCT-1613W-4S	FCT-1625W-4S	FCT-2013W-6S	FCT-2018W-6S
Machine size	1600×1500mm	1600×2625MM	2040×1500mm	2040×2000mm
Working size	1600×1300×200mm	1600×2500×200mm	2000×1300×200mm	2000×1800×200mm
Spindle power	Water cooling 1500W×4	Water cooling 1500W×4	Water cooling 800W×6	Water cooling 800W×6
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver (Chinese servo motor and Japan servo motor is optional)
TOOL diameter	3.175, 4, 6mm
Machine structure	Industry square tube structure
Transmission	TBI ball screw or high accuracy gear rack		High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraving speed	8000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	600kg	1300kg	1000kg	1200kg

FAQS:

1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?
For standard machines, it would be 14 days; For non-standard machines and customized machines according to clients specific requirements, it would be 25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.


If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommended to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?
