Ningbo Blin Machinery Co., Ltd. >> CNC Surface Grinder, CNC Surface Grinding Machine (BL-MS2050N/2550N/3063N/30100N/4080N/40100N) (China top quality)

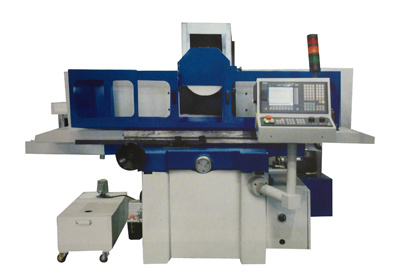

CNC Surface Grinder, CNC Surface Grinding Machine (BL-MS2050N/2550N/3063N/30100N/4080N/40100N) (China top quality)

Name: CNC Surface Grinder, CNC Surface Grinding Machine (BL-MS2050N/2550N/3063N/30100N/4080N/40100N) (China top quality)
Brand: china-manufacturer-directory.com
SKU: 771286055
Availability: InStock
Rating: 4.5 (63 reviews)

Supplier:	Ningbo Blin Machinery Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BL-MS2050N/2550N/3063N/30100N/4080N/40100N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size(L*W):	200460/254508/305635/3051020/406813/406102mm
Max.Longitudinal Travel:	510/570/765/1130/910/1130mm
Max.Cross Travel:	238/275/340/340/450/450mm
Max.Distance From Spindle Center To Tabl:	450/580mm
Electro Magnetic Chuck Size:	200460/250500/300600/3001000/400800/4001000
Spindle Motor:	1.5/2.2/5.5kw
Hydraulic Motor:	0.75(for 2 Axes CNC) 2.2(for 2 Axes CNC)Kw
Coolant Pump Motor:	0.04/0.125kw
Parallelism From Machining Face To Base:	300:0.005mm
Surface Roughness:	Ra≤0.63um
Type:	Surface Grinding Machine
Controlling Mode:	CNC
Automatic Grade:	Semiautomatic
Precision:	High Precision
Processing Object:	Metal Surface

Product Description

CNC Surface Grinder,CNC Surface Grinding Machine(BL-MS2050N/2550N/3063N/30100N/4080N/40100N)(CHINA top quality)

Specification:

Item		Unit	BL-MS2050N	BL-MS2550N	BL-MS3063N	BL-MS30100N	BL-MS4080N	BL-MS40100N
Table size(W×L)		mm	200×460	254×508	305×635	305×1020	406×813	406×1020
Max.longitudinal travel		mm	510	570	765	1130	910	1130
Max.cross travel		mm	238	275	340	340	450	450
Max.distance from spindle center to table		mm	450		580
Electro magnetic chuck size		mm	200×460	250×500	300×600	300×1000	400×800	400×1000
Table longitudinal movement	Speed	m/min	5~25(2 axes CNC); 0.02~15(3 axes CNC)
	Feed of MPG	mm/div.	0.005(for 3 axes CNC)
Table transverse movement	Auto feed	mm/stroke	0.005~12
	Rapid speed	m/min	0~1
	Feed of handwheel	mm/div.	0.005
Wheel head vertical movement	Auto feed	mm/stroke	0.001~0.05
	Rapid speed	m/min	0~1
	Feed of handwheel	mm/div.	0.001
Grinding Wheel	Speed	rpm	3450(60HZ),2850(50HZ)		1750(60HZ),1450(50HZ)
	Size(O.D.×W×I.D.)	mm	200×20×31.75		350×40×127
Spindle motor		kw	1.5	2.2	5.5
Hydraulic motor		kw	0.75(for 2 axes CNC)		2.2(for 2 axes CNC)
Coolant pump motor		kw	0.04		0.125
Parallelism from machining face to base		mm	300:0.005
Surface roughness		um	Ra≤0.63
Table max.loading capacity(include chuck)		kg	120	180	270	400	500	600
G.W.		kg	1600	1800	2800	3500	3800	4300
Overall size(L×W×H)		mm	2050×1400×1680	2300×1600×1680	2900×2200×1890	4400×2200×1890	3600×2400×1890	4400×2400×1766
Package dimension(L×W×H)		mm	1780×1500×2160	2000×2100×2150	2350×2220×2150	2950×2220×2150	2850×2270×2180	2950×2270×2150

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 35 years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.

Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.

By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.

We look forward to hearing from you at any time!
