Product Specifications
| Prod Model: |
330iM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Metal |
| Laser Type: |
YAG |
| Control: |
CNC |
| Current: |
AC |
Product Description

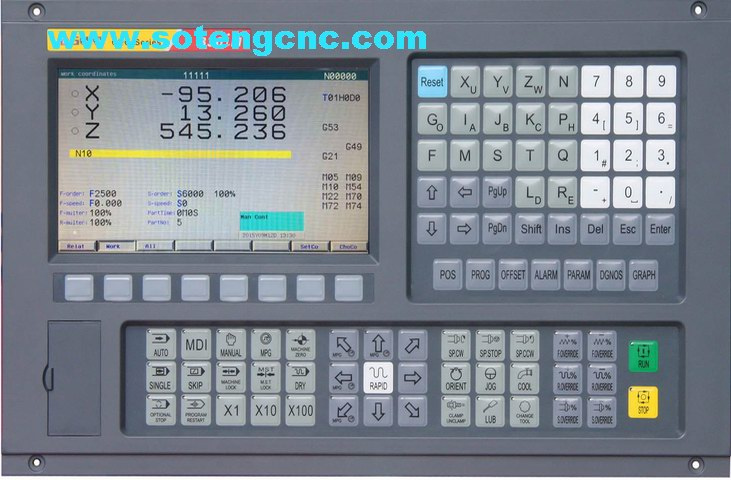

CNC CONTROLLER FOR MILLING--330iM:
>Control axis: 3 axes
>Linkage axis: 2-3 axes
>32 bits 200MHZ ARM Industrial Processor
>32MB user memory
>Resolution 800x480, 8" TFT colorful LED displayer
>Max rapid traverse: 20m/min
>Max cutting speed: 10m/min
>Program preview function
>USB, RS232 port for DNC function
>2D/3D graphic preview or simulation operation before machining
>Multiple level password protection, such as program, parameter protection or convient equipment management
>Start machining at random block or tool number
>Graphic dialogue function
>Real-time and all-round self-diagnosis function
>Feed per minute, feed per revolution
>Metric system, English system input mode
>Machine return to reference/floating zero
>Linear, arc, helix interpolation, drilling, boring, tapping etc
>Multiple macro canned cycle, macro instructions for direct interpolation and milling of rotary body surface
>Automatic backlash compensation and storage pitch error compensation, Tool length automatic compensation, tool radius compensation, automatic transition of inner and outer point angle
>Set the max speed and up/down speed of each axis independently
>Scaling, coordinate system rotation and mirror function
>Shift between metric/british program unit
>Angle setting of auxiliary axis and displacement programe setting
>Multiple coordinate system setting
>Soft and hard limit function for max stroke
>English/Chinese language selection
>Display current time, single piece time and running time
>Multiple interpolation function and M. S. T function
>Parameter, software fule backup and upgrade function
SoTeng CNC Technology Co., Limited is an enterprise specializing in manufacturing and supplying CNC system. AC driver, AC Motor, AC frequency inverter, CNC Machine tools such as CNC lathe, CNC milling machine, CNC machine center, CNC Grinding machine, CNC wire-cut EDM, CNC accessaries etc.
Our main products:
1. CNC Controller for lathe/Turnning Machine/Milling Machine/Machining Centre
2. AC servo drive,
3. AC servo motor,
4. Spindle servo drive&motor,
5. AC Frequency driver and motor
6. CNC Machine tools such as CNC lathe, CNC milling, CNC machine center, CNC grinder, CNC wire-cut EDM
7. CNC accessaries like CNC tooling system, turret, flexibile conduit...
To ensure better and professional service, we establish our new professional work team in overseas market to give instant and timely communication with customers, which can finish target in short time and save our customer's time. Customer's satisfication is always our working target, we always try our best to supply good quality CNC products at best price. Quality is our first stand, we never recommend any poor items to our customers to ensure no trouble to our customers as much as possible, we can promise nothing to our customers, but we always try our best to promise good or famous brand items at better or best price to all our customers. We value and appreciate all confidence and belief from our customers, it's you who give our source of life, no trust from you, we'll lose everything.
"Commitment to hand-shake, heart to heart service "is our service aim, please always feel free to get contact with us, if anything helpful we can do any time. Thanks!
