Product Specifications
| Prod Model: |
AD-35/AD-35L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Type: |
Large Machine Tool |
| Automatic Grade: |
Automatic |
Product Description

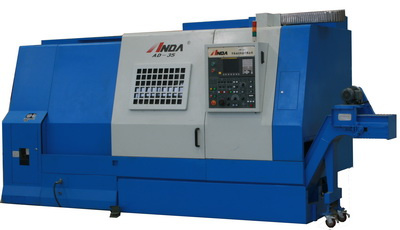

AD series CNC lathes are of slant bed, full functional popular edition. They are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning of internal and external cylindrical, conical, arc surfaces and various threads. And they are especially fit for turning of diversified work-pieces on small and medium batches. They are of high versatility, high efficiency, low inferiority and good conformability, Also, being excellent medium type machining equipment, they are of simple programming, easy operation and with full functions.
1. High rigidity precision and reliability 45° Slant bed design.
2. The high precision and powerful spindle is driven directly by the main motor. It can accomplish infinite frequency variable speed changing. Being of wide range, full automatic, and the spindle speed can accommodate wide machining range.
3. The wide range powerful main motor insures the spindle to accomplish large torque output at low speed range.
4. Drum type 12-position turret with hydraulic indexing motor.
5. Hard guide-way design insures accomplish heavy cutting task.
6. The movable safe-guard design makes the machines easy to operate and easy to load/unload work-pieces.
7. Equipped with load reducing device makes the tailstock easy to move.
8. Taper turning unlimited angle and length.
9. Cutting of various cylindrical and taper threads, and continuous transition threads.
|
1. Main Specifications: AD-35 |
AD-35L |
|
Swing over bed 660mm |
660mm |
|
Max. turning dia. 550mm |
550mm |
|
Max. turning over carriage 420mm |
420mm |
|
Max. turning length 780mm |
1530/1890mm |
|
Max. length of work piece 890mm |
1640/2000mm |
|
Max. bar capacity 80mm |
|
X-axis travel 305mm |
|
Z-axis travel 855mm |
1605/1965mm |
|
Rapid traverse(x-and z-axis) 12/15m/min |
|
Cutting feed(x- and z-axis) 5000m/min |
|
Hand feed(x- and z-axis) 1260m/min |
|
Spindle nose A2-8 |
|
Spindle speed range 25-2500rpm |
|
Size of chuck 21” |
|
NO. of stations 12 |
|
Indexing time (second) 0.9 |
|
Tool shank size 25*25mm |
|
Boring bar shank dia. 50mm |
|
Tailstock: |
|
Max. travel 760mm |
1500/1900mm. |
|
Quill dia 110mm |
|
Quill taper hole MT-5 |
|
Main spindle motor 22/30kw |
|
X-axis servo motor 3.0kw |
|
Z-axis servo motor 4.0kw |
|
Machine weight 8T |
10/11T |
|
Machine height 2.13m |
|
Machine length .62m |
4.62/5m |
|
Machine width 1.82m |
SoTeng CNC Technology Co., Limited is an enterprise specializing in manufacturing and supplying CNC system. AC driver, AC Motor, AC frequency inverter, CNC Machine tools such as CNC lathe, CNC milling machine, CNC machine center, CNC Grinding machine, CNC wire-cut EDM, CNC accessaries etc.
Our main products:
1. CNC Controller for lathe/Turnning Machine/Milling Machine/Machining Centre
2. AC servo drive,
3. AC servo motor,
4. Spindle servo drive&motor,
5. AC Frequency driver and motor
6. CNC Machine tools such as CNC lathe, CNC milling, CNC machine center, CNC grinder, CNC wire-cut EDM
7. CNC accessaries like CNC tooling system, turret, flexibile conduit...
To ensure better and professional service, we establish our new professional work team in overseas market to give instant and timely communication with customers, which can finish target in short time and save our customer's time. Customer's satisfication is always our working target, we always try our best to supply good quality CNC products at best price. Quality is our first stand, we never recommend any poor items to our customers to ensure no trouble to our customers as much as possible, we can promise nothing to our customers, but we always try our best to promise good or famous brand items at better or best price to all our customers. We value and appreciate all confidence and belief from our customers, it's you who give our source of life, no trust from you, we'll lose everything.
"Commitment to hand-shake, heart to heart service "is our service aim, please always feel free to get contact with us, if anything helpful we can do any time. Thanks!
