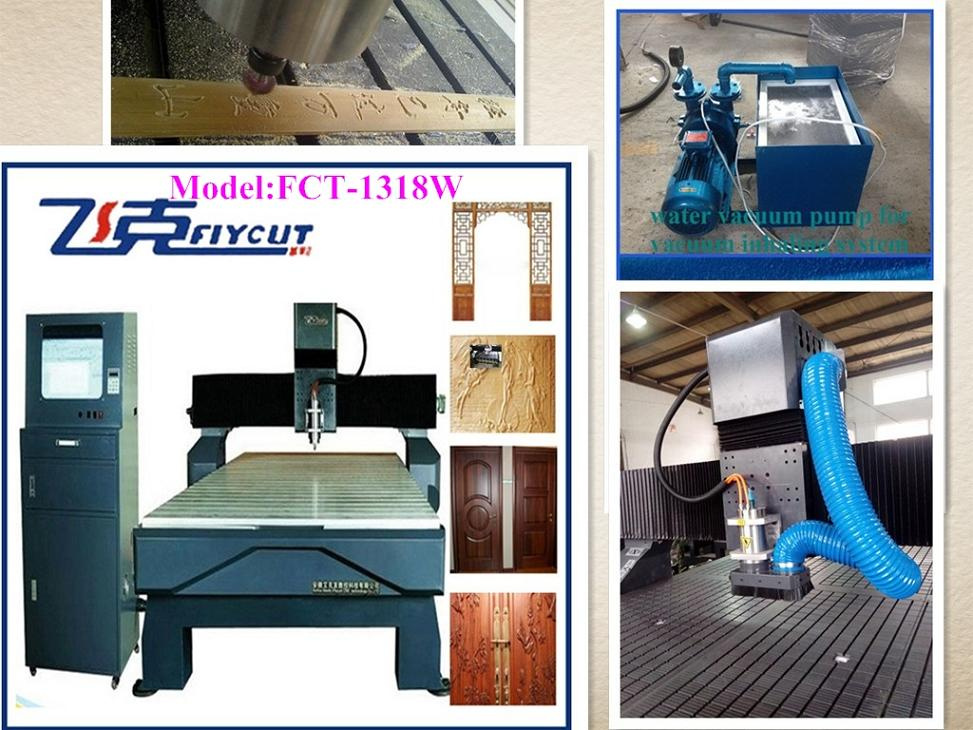

CNC Wood Router Machine 1318W CNC 3D Engraver CNC Woodworking Machinery

Product Specifications

Prod Model:	FCT-1318W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Size:	1600X200mm
Working Size:	1300X1800X200mm
Spindle Power:	Water Cooling 2200W
Spindle Speed:	6000~24000rpm
Motor:	Stepper Motor
Control System:	DSP
Inverter:	Fuling
Transmission:	Taiwan Tbi Ball Screw
Guide Rail:	Taiwan PMI Square Rails
Engraving Speed:	8000mm/Min
Spindle Layout:	Horizontal
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO

Product Description

Features:
1.       The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
2.       The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3.       The major machine body makes the stability and no shacking in high speed.
4.       XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5.       The professional mechanical design, scientific structure and generous appearance.
6.       XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7.       High quality driver motor, spindle motor, cables, inverters, etc.
8.       Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.

Special configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.

Tips to choose suitable machine:
1)What materials do you want to engrave or cut?
2)What's the max. size of the materials (Length*Width*Thickness)?

Contact us now!
Betty(overseas department salesman)
Mobile:+86 187 0986 6712
Http://www.flycut.cn/en/



Model	FCT-1318W
Machine Size	1600×2000mm
Working Size	1300×1800×200mm
Spindle Power	Water cooling 2200W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver (China servo motor and Japan servo motor is optional)
Tool diameter	3.175,4,6,12.7mm
Machine structure	Industry square tube structure
Transmission	The ballscrew or high accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Machine accuracy	<0.03/300mm
Engraving speed	8000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	900kg
