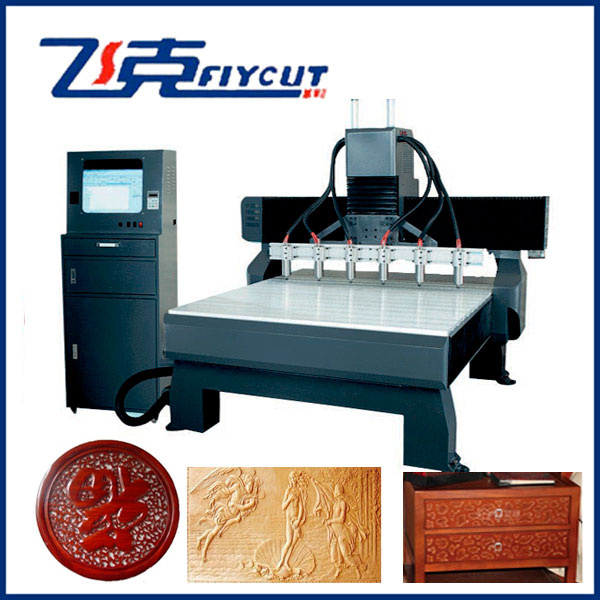

CNC Woodworking Machinery with 6 Axis

Name: CNC Woodworking Machinery with 6 Axis
Brand: china-manufacturer-directory.com
SKU: 751386635
Availability: InStock
Rating: 4.8 (143 reviews)

Supplier:	Anhui Aikefa CNC Technology Co., Ltd.
Price:	US $ 6200set/sets
Min Order:	1set/sets
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FCT-2018W-6S
Markets:	North America,Southeast Asia,Mid East
Machine Size:	2040X2000mm
Working Size:	2000X1800X200mm
Spindle Power:	Water Cooling 800wx6
Net Weight:	1300kg
Spidle Quantity:	6 Spindles
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Type:	CNC Wood Relief Machine
Spindle Number:	6 Spindles

Product Description

Features:

1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stablity.

2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.

3. The major machine body makes the stability and no shacking in high speed.

4. XYZ all apply imported screw, high precision gear frame linear square guide, ensure the high accuracy.

5. The professional mechanical design, scientific structure and generous appearance, gantry height 200mm can ensure Z axis working size.

6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.

7. High quality driver motors, spindle motors, cables, inverters,etc.

8. Professional CNC control system, can compatible with many kinds CAM software, suc as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:

Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.

Special configuration:

It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.

Technical Parameters:

Model	FCT-1613W-4S	FCT-1625W-4S	FCT-2013W-6S	FCT-2018W-6S
Machine size	1600×1500mm	1600×2625MM	2040×1500mm	2040×2000mm
Working size	1600×1300×200mm	1600×2500×200mm	2000×1300×200mm	2000×1800×200mm
Spindle power	Water cooling 1500W×4	Water cooling 1500W×4	Water cooling 800W×6	Water cooling 800W×6
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver (Chinese servo motor and Japan servo motor is optional)
TOOL diameter	3.175, 4, 6mm
Machine structure	Industry square tube structure
Transmission	TBI ball screw or high accuracy gear rack		High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	<0.03/300mm
Engraving speed	8000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	600kg	1300kg	1000kg	1200kg

Anhui AIkefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and offers services of numerical control and photoelectric products. The company has independent license for export and import, bears" Innovate technology and creat valus for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
