CNG Compressor CNG Fueling Station Equipments CNG Compressor
Product Specifications
| Prod Model: |
CNG compressor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Average Flow: |
1400-2000 Nm3/H |
| Suction Pressure: |
3.0-20.0 MPa |
| Discharge Pressure(Max): |
25.0 MPa |
| Motor Power: |
60-74 Kw |
Product Description
Company Introduction:Qingdao Luke Auto Gas Development Co.,Ltd is a Sino-Austria joint venture,founded by Sinopec Qingdao Petrochemical company and Gas auto International of Austria in 1997.
LUKE is one of leading companies in China for CNG/LNG/L-CNG compressors, dispensers, storage tanks and other required accessories, including complete turn-key CNG,LNG,L-CNG refueling stations. We have established good business relations with Sinopec, Petro China, CNOOC and other regional companies.
Luke has won science and technology awards and a special fund from MSTC(Ministry of science and technology, P.R.C.), for our unique hydraulic CNG compressor design. The design of the valve housing with vacuum insulation used in LNG for process pipelines has won National Patent Design Awards.
LUKE has an experience of two decades in the production of compressors and offers her customers the benefits of the latest development in design, engineering, proven manufacturing methods, testing under full load, all from a single source. We are able to offer the high quality equipments, as well as consultant service on design, project development and construction of CNG,LNG,L-CNG and LPG refueling stations.
Up to now, LUKE has supplied over 200 Fueling stations for CNG, LNG, L-CNG and LPG refueling stations all over China Mainland.
Products Introduction:

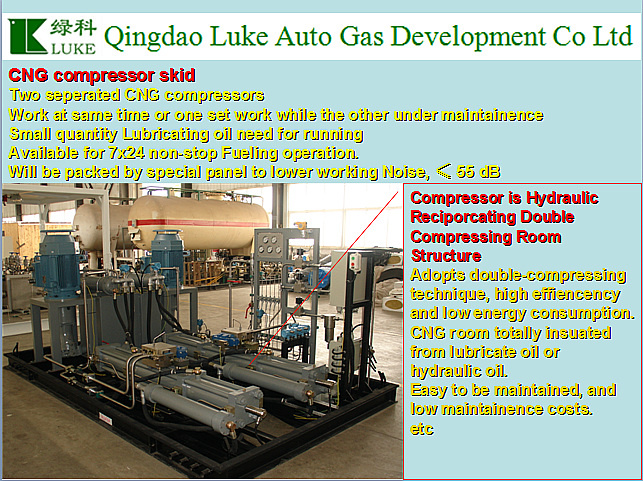

Major advantages and range of application
1 The compressor is hydraulic reciprocating piston compressor.
2 The Machinery is a package design, suitable for fueling station who has a big fueling capacity, or unstable fueling capacity, or those stations can not be maintained regularly.
3 The Machinery has two independent compressing systems, they can work together or independently. Fueling stations can choose working mode according to fueling capacity, to save electric energy and fueling costs.
4Since the two working systems are independent to each other, they can be repaired and maintained when the other one is working. This will ensure 7x24 non-stop service to public.
5 The compressing process is under totally insulated environment, it causes no CNG leased nor polluted.
6 The compressor can be lubricated without any lubricate oil, since it uses our special technology and ensured no pollution to environment.
7 The compressor is free from the lubricating system, this save huge costs for maintainence and human labor.
8 The compressor costs small quantity lubricat oil for non-CNG part, and equipped with low working rates electric engines, so it costs little for its running.
9 The inlet of the compressor is wide range, so the compressor can start at anytime and no need for hydraulic preparing.
10 The compressor is controlled by PLC system, full automatic, equipped with touch screen with big CPU, and is free from human active on duty.
11The Machinery is suitable for general standard CNG tanker, easy to be operated, and save equipments invests.| Iterm Number | Iterm Name | Unit | Index Number |
| 1 | Compressor Medium | | Natural Gas |
| 2 | Drive Engine | | Hydraulic Oil |
| 3 | Lubricating Pattern | | Oil-free Lubricating Technique |
| 4 | Average Flow | Nm³/h | 700 |
| 5 | Inlet Pressure | Mpa | 3.0 ~ 20.0 |
| 6 | Output Prerssure | Mpa | 25 |
| 7 | Output Tempreture | ºC | ≤ highest local Tempreture + 10 |
| 8 | Engine Revolving Speed | r/min | 1465 |
| 9 | Compressor Stage | | Double Stage |
| 10 | Cooling Pattern | | Circling Liquid Cooling |
| 11 | Cooling Medium | | Anti-freezing Solution |
| 12 | Boundery Dimension | mm | 2800*2000*3040 |
| 13 | Noise Level | dB(A) | ≤ 75 dB |
| 14 | Main Engine Working Rate | Kw | 30 |
| 15 | Engine Voltage | V | 380 |
| 16 | Anti-explosion Level | | ExdembiiBT4 |
| 17 | Inlet Connector Style | | Φ20 Ferrule connector |
| 18 | Instrument Air connector Style | | Φ8 copper Ferrule connector |
| NO. | Technical terms | Unit | Parameters |
| 1 | compression medium | | Natural gas |
| 2 | Transmission | | Hydraulic power |
| 3 | Lubricating system | | Oil-free lubrication |
| 4 | Average flow | Nm³/h | 1400 / 2000 |
| 5 | Suction pressure | Mpa | 3.0-20.0 |
| 6 | Discharge pressure(Max) | Mpa | 25.0 |
| 7 | Discharge temperature | ºC | Not above max environmental temperature plus 10 |
| 8 | Motor speed | r/min | 1465 |
| 9 | No. of compression stages | | 2 |
| 10 | Cooling system | | Water circulation and air cooling |
| 11 | Cooling medium | | Antifreeze fluid |
| 12 | External dimensions of skid mounted compressor | mm | 4500*2400*3020 |
| 13 | Noise | dB(A) | ≤75 |
| 14 | Motor power | kW | 60 / 74 |
| 15 | Motor voltage | V | 380 |
| 16 | Anti-hazard classification | | ExdembIIBT4 |
| 17 | Ports of Inlet and outlet | | Fitting, diameter is 20 mm |
| 18 | Ports of instrument air | | Copper fitting, diameter is 8 mm |
Contact:William
+86 138 0897 5907
Qingdao Luke Auto Gas Development Co., Ltd is a company established in 1997, located in the beautiful coastal city of Qingdao, as a China-Austria joint venture with the aim to protect our common environment. We are specializing in the manufacturing of Hydraulic piston CNG Compressors with big capacity, Automotive converting, Researching, Manufacturing, Installations and after-sale service for LNG refueling stations and CNG filling stations. At present, the company owns 10000 square meters manufacturing plant.
The company co-operates with foreign enterprises to develop the CNG gas stations and Skid-mounted LNG refueling station technology, suitable to the Chinese market. The products have obtained 14 national patents with advantages of lower costs, short time installation, usage of small area and high automatization.
Since the products have been launched to the market, they obtained warmly response from customers. Many filling stations have been installed all over the country, at present we maintain 10% market share in China.
After many years of development, we have rich experiences in production, installations and after- sale service in the industry. At present, we have build up four centers in China, such as Qingdao, Zhengzhou, Nanjing and Changchun city.
Based on high-quality products and excellent service, the company has good reputations and maintains close business relationship with famous domestic enterprises such as SINOPEC, PETRO China and CNOOC etc.
Our future development plan is to become a comprehensive group, committed to the new energy equipment design and manufacturing, professional installation, gas station management and international trade in natural gas fields.
LET'S WORK TOGETHER TO PROTECT OUR ENVIRONMENT!
