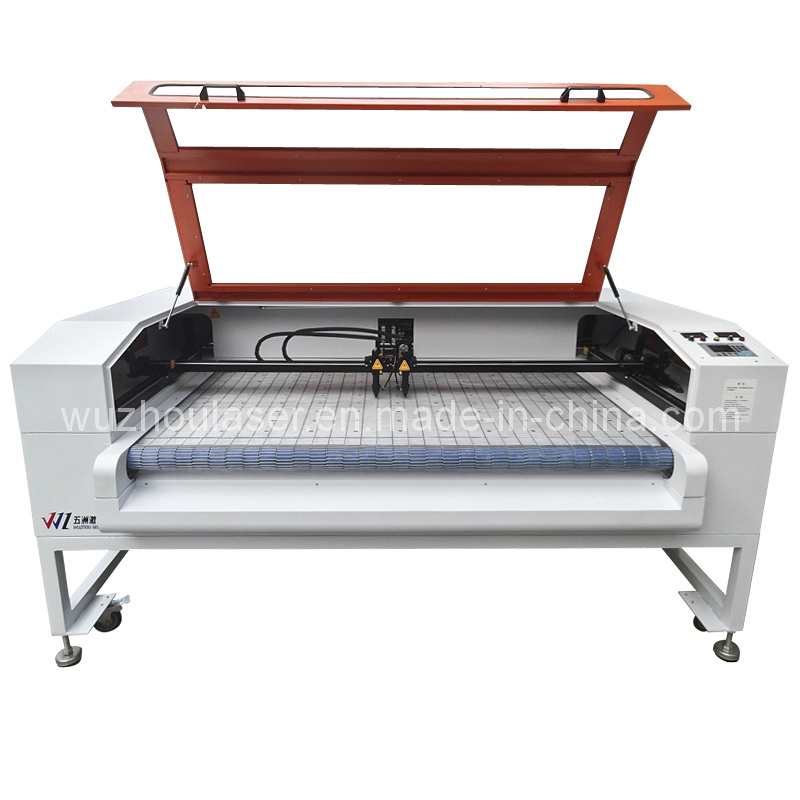

Auto Roll Feeding Laser Cutting Machine, Fabric Laser Cutting Machine, Fabric Laser Engraving Machine, Laser Cutting Machine, CO2 Laser Cutting Machine, Laser Engraving Machine, CO2 laser engraving machine
Product features
Machine is with double head with new technologies: 1. Auto laser emittance control function according to cutting requirement, which saves laser energy; 2. Auto head adjustment function according to design cutting, which saves manual working and time. Together with the air driven conveyor system, this machine is a highly automatic and technology machine with high working efficiency and energy saving, it is a great machine applied to modernization production.
Applicable industry
Garment, leather, cloth toys, embroidery patch cutting, electric, mould, arts and crafts, advertising, decoration, packaging print and so on.
Applicable materials
Fabric, leather, paper material and so on, batch roll materials and wood, organic glass, resin, acrylic, plastic, rubber, ceramic tile, crystal, bamboo and other non-metal material.
Technical parameter (different sizes accordingly; USA tube is optional. )
|
Model |
WZ160100DI-AF |
|
Laser tube type |
Hermetic and detached CO2 domestic laser tube |
|
Cutting area(MM) |
1600mm*10000mm |
|
Driving system |
Stepping motor |
|
Data transfer mode |
Computer; USB flash disk, Internet |
|
Maximum Memory |
128M |
|
Laser power |
80W*2 |
|
Laser head |
Dual laser head (30mm up & down adjustable) |
|
Cooling method |
Water cooling (with laser tube protection system) |
|
Engraving speed |
0-64000mm/min |
|
Cutting speed max |
0-36000mm/min |
|
Location precision |
<0.01mm |
|
Support file |
PLT,DST,DXF,AI,DWG,BMP,CAD,CAM,CDR and so on |
|
Working temperature |
0-45ºC |
|
Working humidity |
5%-95% |
|
Working table |
Roll conveyor auto material feeding |
|
Cutting power control |
Fine turning possible |
|
Power supply |
220V,50-60Hz,10AMax |
|
Dimension |
About 235(L)*230(W)*115(H)cm |
|
Net Weight |
650kg |
Dongguan Wuzhou Laser Scien-Tech Co., Ltd is a high technology enterprise which is devoted to the manufacture of high quality and standard laser equipment for global users.It is located in the international industrial city---Dongguan city of Guangdong provice.With the professional research, sales and after-sale service team, Wuzhou laser continuously manufactures new machines with excellent performance and functions to meet market requirements in different industries.With the strong research capabilit, excellent quality, perfect quality testing system, high qualified after-sale service team, and multiply communication channels, Wuzhou laser has become the profound competitive laser equipment manufacturer domestically, and its products have been exported to many countries all over the world.
WUZHOU LASE has more than 60 models including laser cutting machines, laser engraving machine, and laser laser marking machines, all of them play a very important role in many kinds of industries such as textile, garment, clothing, industry materials, adertisement, arts and crafts, pringting and packing, furniture, docoration, medical treatment, metal processing and so on.
Wuzhou laser persists in the concept of "profession brings up high quality, service creates value" to build the brand equipment in industrial laser application field with the spirit of "solidarity, striving, pragmatism, innovation".Our goal:To be the first-class laser equipment manufacturer in the world!We are looking forward to sincere cooperation with you based on our excellent quality and intimate service to create brilliance together!
