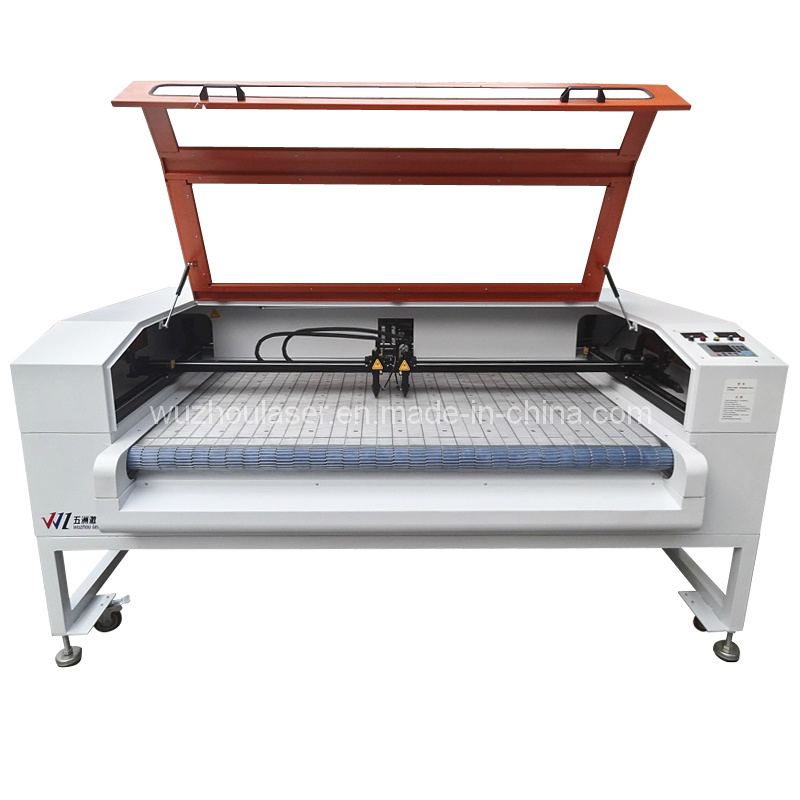

Roll Batch Leather Laser Cutting Engraving Machine with Auto Feeding Device-WZ160100D-AF, Leather Laser Cutting Machine, Fabric Laser Cutting Machine, Auto Feeding Laser Cutting Machine, Cutting Machine, Leather Laser Cutting, Leather Laser Engraving Machine, Fabric Laser Engraving.
Product Features
Machine is equipped with auto roll conveyor system for working table, together with the precise system control adjustment, it can finish material feeding and cutting automatically, which save a lot of time and labor for material feeding, so the working efficiency is greatly enhanced. High efficiency and automation is its special advantage. This model is the best choice for the roll batch material processing.
Especially with the unique auto air driven roll conveyor system, which gives stable air pressure on the material holding, make sure the stable and continuously material feeding with 100% accuracy, it solves the problem of material waste and lose due to material feeding accuracy and material position deviation and lose problems from traditional machines with simple and easy conveyor system
Applicable Industry
Garment, leather, cloth toys, embroidery patch cutting, Electric, mould, arts and crafts, advertising, decoration, packaging print and so on.
Applicable Materials
Fabric, leather, paper material and so on, batch roll materials and wood, organic glass, resin, acrylic, plastic, rubber, ceramic tile, crystal, bamboo and other non-metal material.
Technical parameter (different sizes accordingly; USA tube is optional. )
|
Model |
WZ160100D-AF |
|
Laser tube type |
Hermetic and detached CO2 domestic laser tube |
|
Cutting area(MM) |
1600mm*1000mm |
|
Driving system |
Stepping motor |
|
Data transfer mode |
Computer; USB flash disk, Internet |
|
Maximum Memory |
128M |
|
Laser power |
80W*2 |
|
Laser head |
Dual laser head (30mm up & down adjustable) |
|
Cooling method |
Water cooling (with laser tube protection system) |
|
Engraving speed |
0-64000mm/min |
|
Cutting speed max |
0-36000mm/min |
|
Location precision |
<0.01mm |
|
Support file |
PLT,DST,DXF,AI,DWG,BMP,CAD,CAM,CDR and so on |
|
Working temperature |
0-45ºC |
|
Working humidity |
5%-95% |
|
Working table |
Roll conveyor auto material feeding |
|
Cutting power control |
Fine turning possible |
|
Power supply |
220V,50-60Hz,10AMax |
|
Dimension |
About 235(L)*230(W)*115(H)cm |
|
Net Weight |
660kg |
Dongguan Wuzhou Laser Scien-Tech Co., Ltd is a high technology enterprise which is devoted to the manufacture of high quality and standard laser equipment for global users.It is located in the international industrial city---Dongguan city of Guangdong provice.With the professional research, sales and after-sale service team, Wuzhou laser continuously manufactures new machines with excellent performance and functions to meet market requirements in different industries.With the strong research capabilit, excellent quality, perfect quality testing system, high qualified after-sale service team, and multiply communication channels, Wuzhou laser has become the profound competitive laser equipment manufacturer domestically, and its products have been exported to many countries all over the world.
WUZHOU LASE has more than 60 models including laser cutting machines, laser engraving machine, and laser laser marking machines, all of them play a very important role in many kinds of industries such as textile, garment, clothing, industry materials, adertisement, arts and crafts, pringting and packing, furniture, docoration, medical treatment, metal processing and so on.
Wuzhou laser persists in the concept of "profession brings up high quality, service creates value" to build the brand equipment in industrial laser application field with the spirit of "solidarity, striving, pragmatism, innovation".Our goal:To be the first-class laser equipment manufacturer in the world!We are looking forward to sincere cooperation with you based on our excellent quality and intimate service to create brilliance together!
