Product Specifications
| Prod Model: |
CJG-160300LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Laser Cutting Machine for Table Cloth |
| Product Name: |
Flatbed Laser Cutting Machine |
| Laser Type: |
CO2 RF Metal Laser Tube |
| Laser Power: |
80W, 100W, 130W, 150W |
| Laser Optics: |
USA Ii-Vi |
| Working Area: |
1600mmx3000mm |
| Cutting (No-Load) Speed: |
0-36000mm/Min |
| Motion System: |
Servo System, Safety Alarm System |
| Format Support: |
Ai, BMP, Plt, Dxf, Dst etc. |
| Type: |
Laser Cutting Textile, Garment, Fabric |
| Certification: |
CE |
Product Description

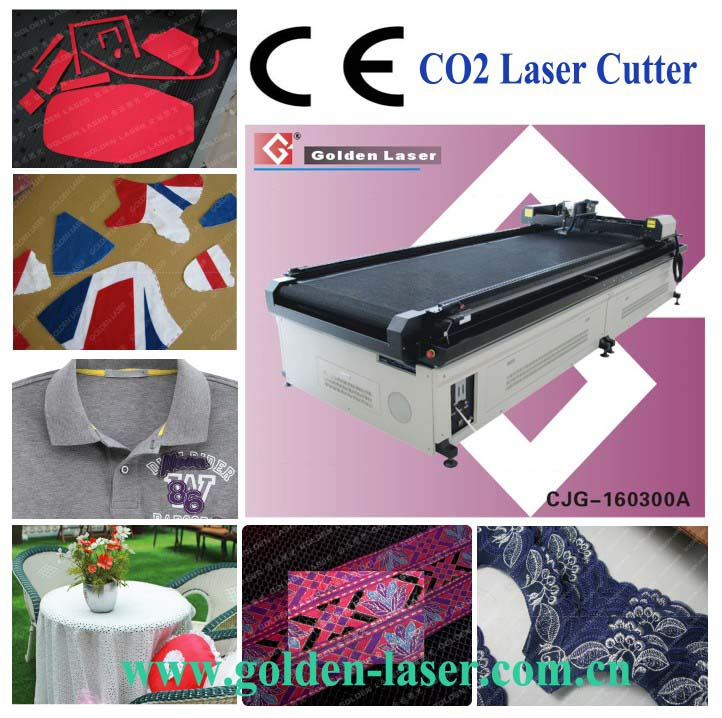

CO2 Flatbed Laser Cutting Machine For Table Cloth/Curtain/Household Textile
Golden Laser is a professional manufacturer of laser cutting machines who can integrate laser cutting, precision unwinding and rewinding, auto marker, continuous cutting of super long material. Auto-recognition cutting, marking, scoring and order management together, the enterprise produces super large working size, fast speed, high precision laser cutting machines with Euro CE standard.
CO2 Laser Cutting Machine for Fabric, Leather, Textile
Brief Introduction:
Compared with the traditional knife and hot branding processing, laser is advanced CNC technology and a unique non-contact processing, working without any graphical limits and will not produce any mechanical deformation. Laser processing has the advantages of high precision, high speed, no fraying, and high quality results. In addition, applicability of laser processing is more flexible. Laser can do cutting, engraving, hollowing, punching and other processing for a variety of textile, fabrics, garment accessories, leather, fur, shoe, plush toy, home textile, upholstery, carpet, automotive interior, car seat cover, etc. Laser processing technology is more sophisticated, creative and unique.
Application:
Cutting Cotton Fabric, Polyester Fabric, Aramid Fabric, Kevlar, Jersey Fabric, Knitted Fabric, Nonwoven Fabric, Woven Fabric, Linen Fabric, Nylon Fabric, Silk Fabric, Wool Fabric, Stretch Fabric, Lycra, Canvas, Chiffon, Tarpaulin, Denim Jeans, Velvet fabric, Plush Fabric, Embroidered Fabric, Printed Fabric, Coated fabric, etc.
Product Highlights:
1, Large format processing, high volume production.
2, It has unique advantages for special materials processing, such as seamless bonding, sponges, cutting of automobile air bags, inflatable fabrics, filter cloth, parachute, ski clothes, wedding dresses, home textile, etc.
3, The machine's bed is very firm, solid. Strong loading capacity.
4, Equipped with vacuum absorb convey worktable, Japan YASKAWA servo motor, high-strength silicon and non-spherical focus lens imported from the world-renowned lens maker - the company's II-VI U. S.
5, With special high-performance, constant temperature water chiller, it can auto adjust according to ambient temperature and keep the machine continue working, assure the efficiency of cutting and lower your cost.
6, The laser cutting machine combines batch production and personalized cutting, if it is equipped with feeding system, which can do auto and continuous process. The up exhaust and bottom absorb suction system make sure non-pollution and high quality process.
7, It adopts specialized software, that compatible with kinds of file format, such as AI, BMP, PLT, DXF, DST and so on. It can meet demand for most of garment CAD design output in time, after the layout, it can graded automatically continuous output graphics that beyond the cutting format, can realize automatic continuous production if you choose auto-feeder system.
Spare Parts:
Glass laser tube 100W
Reflective mirror(Dia.: 20mm)
Focus lens
Optional Device:
Auto feeder equipment: It can be divided into two kinds of, V-type feeder and common feeder.
V-type feeder: You can directly put the roll material onto the feeder
Common feeder: You need put the roll material on the feeder through a bar
Outside exhaust fans
|
Product Model |
CJG-160300LD |
|
Max. Cutting Area |
1600*3000mm (63" *118" ) |
|
Laser Power |
CO2 glass laser tube 100W (Normal using life: about 1000-2000 hours) |
|
Max. Cutting Speed |
600mm/s (24" )/s (adjustable) |
|
Resolution |
≤ 4000dpi |
|
Positioning Precision |
0.025mm(0.0009' ' ) |
|
Repeat Precision |
0.08mm(0.003" ) |
|
Motor |
Servo motor |
|
Cooling System |
Water cooling and protection system |
|
Support Image Format |
AI, BMP, PLT, DXF, DST and so on. |
|
Cutting Software |
Golden Laser cutting software |
|
Interface |
USB |
|
Power Support |
AC 110V-220V/50/60Hz |
|
Standard Equipment |
Vacuum absorb convey worktable, exhaust fan, exhaust pipe, air pump, water chiller |
|
Spare Parts |
Reflective mirror, lens, laser tube |
|
Optional Device |
Auto feeder equipment, outside exhaust fans |
|
Machine Dimension |
4300*2200*1500mm (169" *87" *59" ) |
|
Machine Weight |
780kg |
|
Package |
Fumigation free package |
|
Packing Size |
4000*2300*1700mm |
|
Packing Weight |
980kg |
