Product Specifications
| Prod Model: |
ZJ(3D)-4545 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
450*450mm |
| Laser Type: |
CO2 RF Metal Laser Tube |
| Laser Power: |
400W/500W |
| Repeating Location: |
0.1mm |
| Cooling System: |
Constant Temperature Water Chiller |
| Working Table: |
Rotary Working Table |
| Motion System: |
Offline 3-D Dynamic Motion Control System, 5 Inch |
| Format Support: |
Ai, BMP, Plt, Dxf, Dst etc. |
| Standard Configuration: |
2 Sets of 1100W Exhaust Fans, Foot Switch, CCD Cam |
| After-Sale Service And Warranty: |
Support |
| Type: |
Leather Punching Machine |
| Certification: |
CE |
Product Description

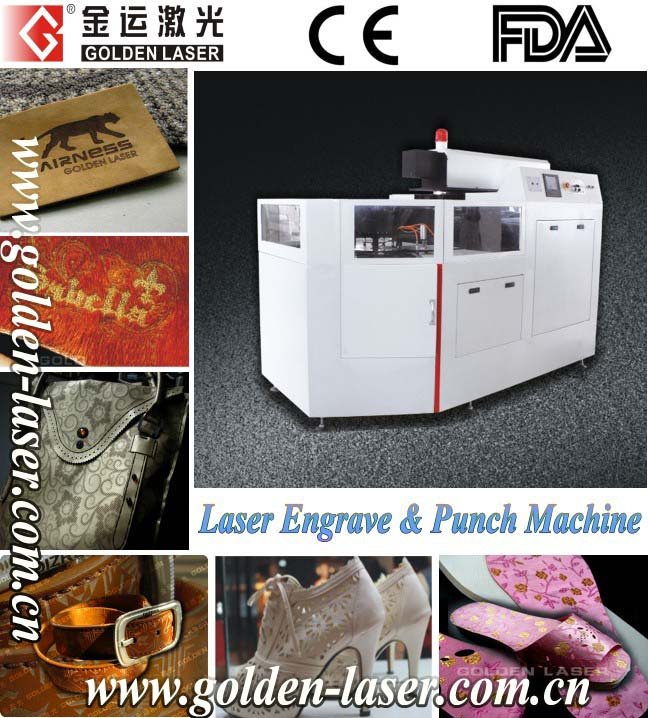

High Speed Galvo 400W 500W Automatic Laser Engraver Shoe Materials/Punching Machinery
ZJ(3D)-4545 automatic shoe material laser engraving & punching machine
GOLDEN LASER Advantages for Leather Engraving, Punching and Cutting:
Efficient and smart nesting technology (Single-image nesting and Multi-image nesting)
Large format high speed Galvo engraving and punching
Advanced pattern digitizing technology
Long strip flying engraving and cutting without splicing traces
Advanced solutions for genuine leather cutting
Long material continuous cutting
High performance spreading, feeding and rewinding systems
Product Feature
1, Standard configuration of 400W CO2 RF metal laser tube ensures high processing accuracy and speed.
2, It adopts triaxial dynamic galvanometer processing system and the cutting area is 450mm× 450mm.
3, It is especially designed for shoe material punching, integrating auto-feeding, punching and auto-sorting.
4, It is equipped with high precision CCD camera positioning system. By putting the shoe material in the material feeding case and processing the material by rotary working table, the machine can realizes continuous shoe material batch punching and rewinding. It greatly improves working precision and efficiency compared with conventional techniques.
Application Field
It is suitable for leather materials.
It is suitable for shoe making industry.
Technical Parameter
Laser types |
CO2 RF metal laser tube |
Laser power |
400W |
Cutting area |
450×450mm |
Working table |
Rotary working table |
Working speed |
Adjustable |
Repeating location |
± 0.1mm |
Moving system |
Offline 3-D dynamic motion control system, 5 inch LCD screen |
Cooling system |
Constant temperature water chiller |
Power supply |
AC220V±5% 50/60HZ |
Format supported |
AI, BMP, PLT, DXF, DST etc. |
Standard collocation |
2 sets of 1100W exhaust fans, foot switch, CCD camera positioning system |
Optional collocation |
CO2 RF metal laser tube(500W) |
Golden Laser is a professional manufacturer in middle and small power laser machines. Since founded in 1992, we persist in market-oriented principle and makes innovation in the field of laser cutting, laser engraving and trademark cutting, etc. We research and develop many laser equipments which are special for textile, leather, large-scale engraving, cloth cutting, embroidery cutting, jeans engraving, trademark cutting. The application area also covers the field of model, advertisement decoration, organic-glass processing, wood processing, paper processing, marble engraving, craftwork, etc. Our product ability has reached to thousands sets per year and become one of key enterprises of China optical valley in the laser application area.
Our members of R&D group all come from China Optic Valley and famous Universities. We have 30, 000 square meters plant and R&D center which are up to the international standard, and our equipment is of super quality. We set up more than ten branches and service point in China. Our products sell fast in more than thirty MID-east and European countries.
Golden Laser pays attention not only to products, but also to exploring potential market and sales channel. We persist in the management concept of 'High quality and professional spirit bring up strength and brand', and also we support China's national industry with our strong technology and brand.
