Product Specifications
| Prod Model: |
HL-BOXA4-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Phone Screen Protector Laser Cutter |
| Laser Power: |
40W Optional |
| Working Area: |
300*200mm |
| Working Speed: |
1-1500mm/S |
| Cooling Mode: |
High Forced Water Cooling Ptotective |
| Graphic Supported: |
Coridraw Photoshop CAD |
| Working Voltage: |
220V 50Hz or 110V 60Hz (Optional) |
| Machine Weight: |
35kg |
| Machine Size: |
600*500*400mm |
| Delivery Date: |
7 Days After Deposit Paid Down |
Product Description
This protective film Laser Cutting engraving machine is Helilaser Factory's high quality standard export product. Which is hot sale on demestic and abroad.

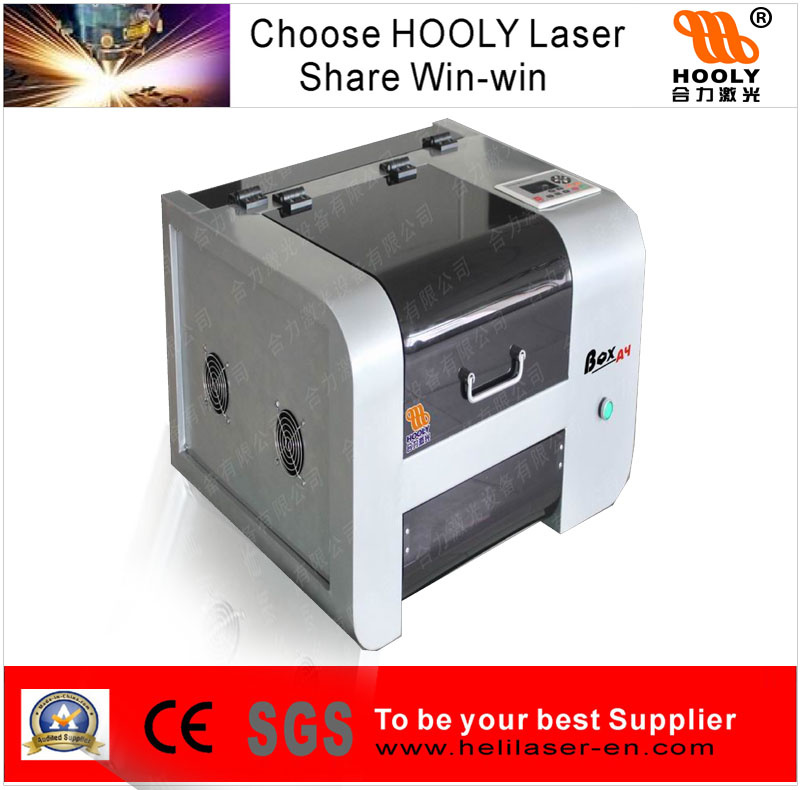

BOX - A4 -A mobile phone screen protector laser cutting machine
1, Advantages Features:
A, professional development model for the screen protective film processing industry.
B, Protective film cutting processing industry traditionally depends on the knife die cutting machine, with the diversified development of touch screen electronic products market, such as the rapid popularization of the mobile phone, digital camera, tablet personal computer, navigation, and other products. The touch screen application scope has become more and more widely, protective film cut ways becomes more diversity, complexity, and the process requirements for cutting the protective film need improving gradually, the traditional die cutter machine is not suitable for small batch production, with high investment costs, Return on Investment is slow, in this case,
C, BOX - A4 - A desktop laser machine is to fill the market blank, this machine is compact, convenient, high efficiency, low cost, convenient use and with many other good characteristics, received customer's high praise. This machine is equipped with feeding roller, automatic feeding platform, four axis linkage, high efficiency laser and laser head, which can realize the feeding and cutting together.
2, Suitable materials and industry
This machine is applicable to cut or engraving the Wood products, paper, leather, cloth, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo products and most of the nonmetallic material. Is suitable for the clothing embroidery, leather, bamboo and wood products, electronic appliances, models, crafts, advertising, packaging and printing, paper products and other industries
Processing effect is fine, smooth cutting edge, no burn, no polishing, clean, no noise, no deformation, high speed, high efficiency and high precision
3, Detail Configutration:
USA step motor and deriving system 1PC or server motor
HeliLaser high standared CO2 glass laser tube 1PC40W/65W/80W/100W/120W/130W/150W
Korea liner guide way 1PC or inside guide way
Singapore optical system 1PC
Dual transmission of USB2.0 1PC
High strength stainless honey comb plateform1PC
Air pump1PC
Industrial chiller1pcor big industrial chiller
Exhaust blower1PC
Other optional configuration with: Rotary device, up and down device, Camera positon, Auto fee device etc.
4, Before sale service
1, Know the detail processing of the user
2, Supply free test for cutting user's material
3, Provide detail processing solution and resonable price list
5, After sale service and Guaranty
1, 24 hours ready to serve the user. Give the timely, correct FAQ solution
2, Machine Guratty for 1 year. Laser tube Guranty for 6months
3, Engineer is avalible to go abroad for machine's maintenance
6. Our other series laser machine
A. HL- C series laser cutting machine
B HL- E series laser engraving machine
C. HL- P series Camera auto position laser cutting and engraving machine
D. HL -T series"Double head" laser cutting engraving machine
E. HL -M series auto feed large area laser cutting engraving machine
F. HL - Mini series desktop laser cutting engraving machine
G. HL - Double edge bevelment thick wood material laser cutting engraving machine
H, CO2 nonmetal laser marking machine, RF non metal laser marking machine,
DP semiconductor laser marking machine. YAG laser marking machine. Fiber laser marking machine
|
Machine Model |
HL-BoxA4 phone screen protector laser cutting machine |
|
Laser power |
30w/60w/80w/120w/150w/180w optional |
|
Working Area |
300mm*200mm |
|
Engraving Speed |
0-1500mm/s |
|
Cutting speed |
0-800mm/s |
|
Repeatin Locating |
±0.03mm |
|
Moving System |
CNC controlling units |
|
Cooling Mode |
Water cooling and protective system |
|
Whole power |
800w |
|
Graphic format supported |
BMP PLT AI DXF DST |
|
operation temperature |
0°c-45°c |
|
Laser Type |
hermetic and detached co2 laser |
|
working voltage |
220 ±10% 50HZ |
|
Operating humidity |
5%-95% |
|
Machine Size |
600mm*500mm*400mm |
|
weight |
35KG |
Dongguan City Heli Laser Equipment Co., Ltd is one of the earliest enterprises specialized in manufacturing the laser cutting engraving marking machines. Located in the famous Economic development zones of the Pearl River Delta in China, With the delta's advanced light industrial machinery, electrical technology and the talents advantages. We got high speed transformation in the laser industrialization fields. We
Have our own metal workshop to design and produce the machine body, with CE certification and with own brand Hooly. In order to improve production. We have also established a Branch Factory in Anshan City.
We main produce fabric Laser cutting machine, acrylic Laser cutting engraving machine, leather laser cutter, wood laser engraver, metal Laser marker, Fiber laser marking machine and supply laser cutting machine spare parts such as laser tube, laser lens, laser power etc.
We have both domestic sales department and foreign trading department. And also a very strong technology team which includes IT engineers and machine designing engineers. After the machine sold to customers we have a mantanance team to do after sale service.
We have many offices in China mainland, and we also have exported many machines to abroad, such as Italy, Russia, Brazil, Australia, Mexican, Morocco, Colombia, Uruguay, South Africa, Spain, Romania, Vietnam, Thailand, Cambodia etc. We sincerely hope agents from all over the world to join us, we believe with the qulitied products and best service which gains good reputation from customers and we are ready to grow together with customers.
Remark: HELI (HK) TECHNOLOGY INDUSTRY Co., Limited is Our Hong Kong Office. Where Dedicated to Charge Foreign Exchange Receipts and Disbursements.
Our branch Factory: Anshan Heli Laser Equipment Co., Ltd
