Product Specifications
| Prod Model: |
GTH1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
(0~1000)Ppm |
| Response Time: |
30s |
| Alarm Point: |
Adjustable, 50ppm Co |
| Output Signal: |
(200~1000)Hz |
| Resolution: |
1ppm Co |
| Environment Temperature: |
0 ~40 |
| Atmospheric Pressure: |
80kpa~116kpa |
| Relative Humidity: |
<=98%Rh |
| Sound Level: |
>=85db |
| Explosion Protection: |
Exibd I |
| Type: |
Electrochemical Gas Analyzer |
Product Description

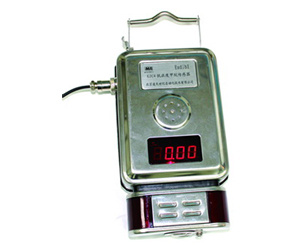

Model: GTH1000
Application:
Using imported long-life electrochemical sensor and micro power consumption single-chip microcomputer control bear, four LCD display, not only sound and light alarm, zero tracking, automatic
Backlight, under-voltage alarm functions, but also accurate and reliable, long service life, small volume, light weight, simple
Operation, convenient maintenance, etc. This instrument is widely used in existence of flammable combustible
Gas mixture working environment continuously measure the concentration of carbon monoxide gas.
|
Item |
Specification |
|
Measuring Range |
(0~1000)ppm |
|
Response Time |
30s |
|
Alarm Point |
Adjustable, 50ppm CO |
|
Output Signal |
(200~1000)Hz |
|
Resolution |
1ppm CO |
|
Environment Temperature |
0 ~40 |
|
Atmospheric Pressure |
80kPa~116kPa |
|
Relative Humidity |
≤98%RH |
|
Sound Level |
≥85dB |
|
Explosion Protection |
Exibd I |
|
Dimensions |
270×155×55mm |
|
Weight |
≤1kg |
Beijing Topsky (Lingtian Shiji) Automatic Technology Co., is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Established in 2003, we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff, we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success!
