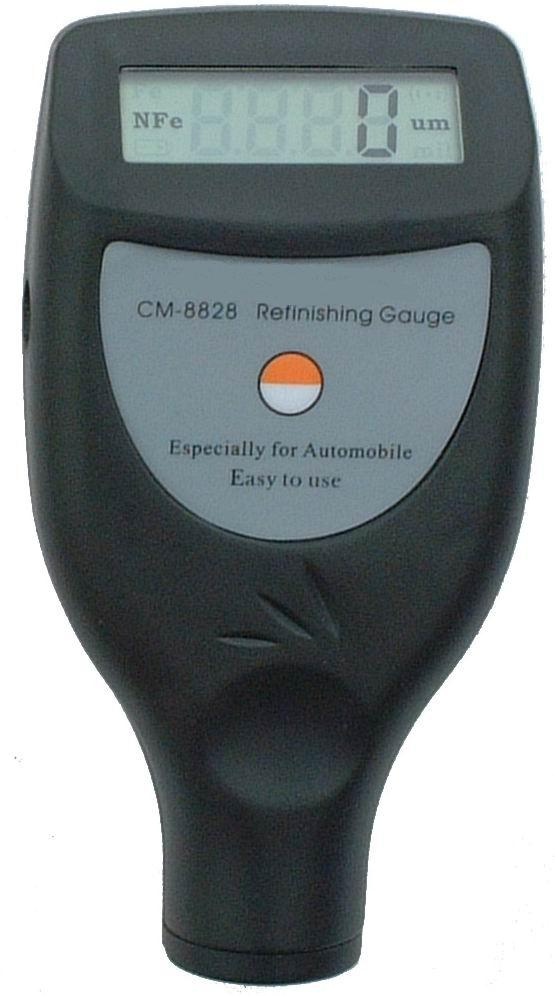

Coating(Painting) Thickness Meter CM8828
It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. Paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc. ) on magnetic materials (e.g. Iron, nickle etc. ). Often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous.
* Wide measuring range and high resolution.
* Metric/English conversion.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions. And printing by the optional cable.
Model: CM8828
In built probe(s)
Operating principle: Magnetic induction/eddy current (F/NF)
Measuring range: 0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: +/-1-3%n or +/-2.5um
Min. Measuring area: 6mm
Min. Sample thickness: 0.3mm
Battery indicator: Low battery indicator
Metric/ imperial: Convertible
Power supply: 4x1.5V AAA(UM-4) battery
Auto power off
Operating conditions: 0~45C (32F~104F ), <=90%RH
Dimensions: 126x65x27mm
Weight: 81g(not including battery)
Optional accessories: Other range 0-200um to 15000um
