Product Specifications
| Prod Model: |
DIN3 ISO 4-20mA-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
DIN3 ISO 4-20mA-F |
| Input: |
0-20mA/4-20mA |
| Output: |
0-20mA/4-20mA |
| Isolation Method: |
Optical Isolation |
| Isolation Voltage: |
3000V |
| Package: |
Small Size DIN Rail |
| Main Circuit Type: |
Current |
| Operating Temperature Range: |
- 25 -70 Centigrate |
| Application: |
PLC and Dcs |
| Industrial Temperature: |
-45~+85 Centigrade |
Product Description

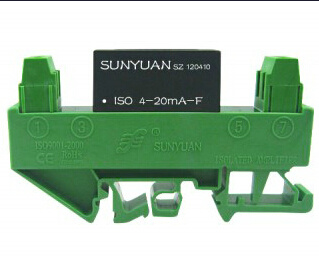

Compact Two-wire DIN3 Rail mounted Optical isolation 4-20mA Loop Powered Isolation Distributor
Features:
Two-wire 4-20mA signal loop (explosion proof) input.
Two-wire 4-20mA power distribution, active output.
High precision and linearity in full measuring range (error <0.2%).
3KVDC high isolation between input and output.
Low impedance (overall pressure drop <2V) external components and power are nor required.
DIN Rail 3 small size, UL94V-0 flame retardant package.
Power distribution for sensor: 16V ~ 21.5VDC
Frequency response (small signal bandwidth):2KHZ (Io=20mA)
Industrial operating temperature range: - 25ºC ~ + 70ºC
Applications:
Supply power to two-wire passive sensor and signal transmission.
PLC, DCS analog signal isolation and data acquisition.
Ground wire current loop isolation and interference inhibition.
Monitoring and controlling signals from metering and instruments to sensors
Analog signal data acquisition and long-distance transmission without distortion.
Electric meters, medical equipments monitoring.
Isolated safety bar for mining or explosion-proof equipments.
Application solutions:
The Universal Connection Solutions for Industrial Sensor and Instruments (ISO 4-20mA) Series
The Application Solutions for DIN3 Rail-mounted 4-20mA Converter/Isolator
Model selection:
DIN3 ISO 4-20mA-F
Small size Electro-magnetic isolation
DIN Rail Two-wire 4-20mA isolated distributor
Genenral parameters:
Parameters |
Testing
Conditions |
Min. |
Typical Value |
Max. |
Unit |
Isolated volt. AC, 50Hz
Insulation resistance
Leakage current |
10S
240Vrms,50Hz |
3000 |
10¹²1
0.5 |
|
VDC
ΩPf
uA |
Temp. drift
Non-linearity |
|
|
±50
±0.2 |
±100
±0.5 |
PPm/ºC
%FSK |
Load capacity |
24VDC |
|
|
500 |
Ω |
Input signal
voltage range |
|
1.2 |
|
30 |
mA |
Output signal
voltage range |
|
|
24 |
28 |
VDC |
Output linearity range
Output current: Io |
|
1.2 |
4
|
24
30 |
mA
mA |
