Product Specifications
| Prod Model: |
2CLG30KV0.2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| L*H*B: |
80*10*10 |
| Trr: |
100ns |
| Tj: |
-40oc~+120oc |
| Features: |
More Sizes Availible |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Through-Hole |
| Application: |
Rectification |
| Model: |
2clg30kv0.2A |
| Brand: |
Leadsun |
Product Description

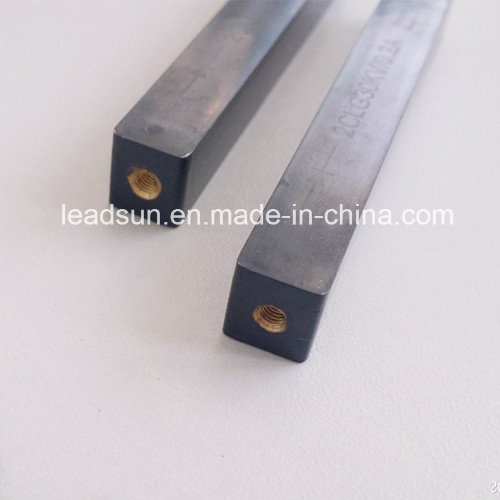

2CLG30KV0.2A High voltage rectifier block adopts high reliable mesa structure and diffusion craftwork, epoxy resin molded in a compact structure.
Product features
1. Avalanche characteristic
2. More sizes available
3. Vacuum molded, non-corrosive epoxy resin case
Application
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
![]()
Limiting Values(Absolute Maximum Rating)
| Item | Symbol | Unit | Condition | Voltage |
| Repetitive Peak Reverse Voltage | VRRM | KV | Ta=25ºC IR=0.1μA | 30 |
| Peak Working Reverse Voltage | VRWM | KV | Ta=25ºC IR=0.1μA | 30 |
| Non-Repetitive Peak ReverseVoltage | VRsM | KV | Ta=25ºC IR=0.1μA | 33 |
| Average Forward Current | IO | A | 50Hz Half-sine Wave ,
Resistance load @Tbreak=50ºC | 0.2 |
| Surge Forward Current | IFSM | A | | 5 |
| Junction and Storage Temperature | T stg | ºC | | -45~+120 |
| Virtual Junction Temperature | T(vj) | ºC | | -45~+120 |
| Item | Symbol | Unit | Conditions | Voltage |
| Forward Peak Voltage | VFM | V | @ Ta=25ºC IF=0.2A | 105.0 |
| Reverse Recovery Time | trr | ns | IF=20mA IR=40mA IRR=10mA | 100 |
| Peak Reverse Current | IRRM1 | μA | @ Ta=25ºC VRM=VRRM | 5.0 |
| Peak Reverse Current | IRRM2 | μA | @ Ta=100ºC VRM=VRRM | 50.0 |
![]()
