Product Specifications
| Prod Model: |
RM-700A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Plastic Type: |
Thermoplastic |
| Ejector Force: |
25kn |
| Screw Diameter: |
32/35/95mm |
| Pump Motor Power: |
9kw |
| Size: |
3.55×1.2×1.6m |
| Net Weight: |
2.7t |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| International Designation: |
700-230 |
| Automation: |
Automatic |
| Making Method Of Parison: |
Injection Blowing |
| Raw Material: |
PET |
| Computerized: |
Computerized |
| Certification: |
SGS, ISO CE |
| Type: |
Injection Moulding Machine |
Product Description

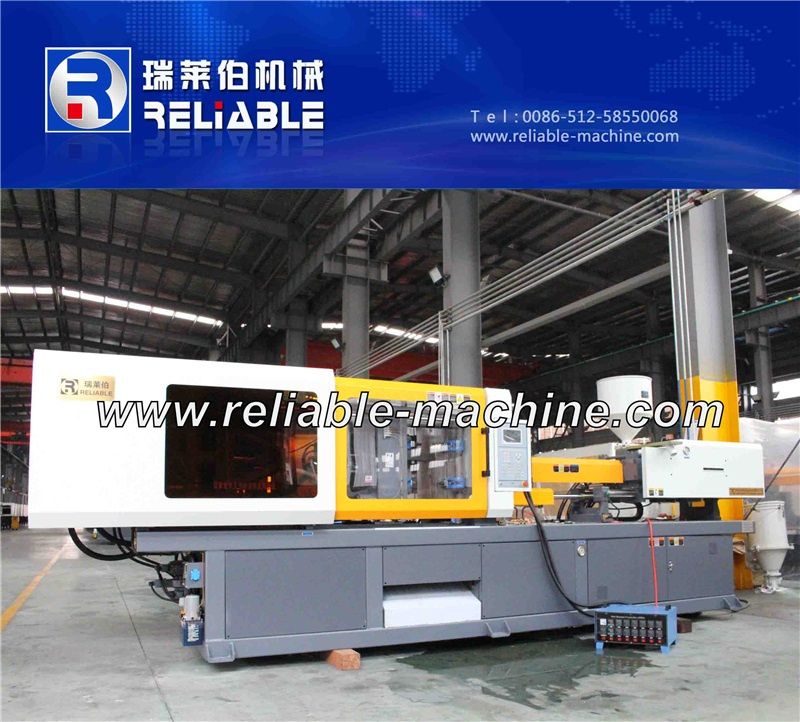

Competitive Price for Injection Moulding Machine/Machinery for Plastic Caps
Features:
1). The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %. It can reduce paper wasting, it is different from other factories.
2). The machine can send the bottom paper to the cup automatically and adjust itself because of a spring, it is also different from other factory.
3). Inside of the machine, we use three ranges chains instead of conventional two ranges chains, it is more fastness, make long service. Some factory only have two range chains.
4). About preheating and main heating, we use aluminium instead of conventional iron pipe. Once machine stop unormally, the cup in side, can not burning it can be much safer.
5). The surface of plate we use stainless steel instead of iron, it can be a much cleaning, sanitation.
6). Most of our wiring device we use adopts from overseas brand. (Japanese omron)
7). If your paper is double PE coated, the machine should be with ultrasonic.
Competitive Price for Injection Moulding Machine/Machinery for Plastic Caps
How to get your suitable machine or production line?
Enquiry: Contact us by email, phone call, fax, Instant Messenger ( MSN, Skype) and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. Sole machine or whole production line.
Reliable Service:
Your inquiry related to our product & price will be replied within 24hours
Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Working time: 8: 30am ~6: 00pm, Monday to Friday(UTC+8).
OEM & ODM projects are both available
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
Competitive Price for Injection Moulding Machine/Machinery for Plastic Caps
ZhangJiaGang Relibale Machinery Co., Lt
|
Item |
Unit |
Data |
|
Max. clamping force |
KN |
700 |
|
Max. opening force |
mm |
290 |
|
(V×H)Space between tie bars |
mm |
320x320 |
(min-max)
Mould height |
mm |
100-300 |
|
Max. daylight |
mm |
590 |
|
Ejector force |
KN |
25 |
|
Ejector stroke |
mm |
60 |
|
Ejector quantity |
|
1 |
|
Screw diameter |
mm |
32 |
35 |
95 |
|
Screw L/D ratio |
L/D |
20 |
18.8 |
19.9 |
|
Theoretical shot volume |
cm 3 |
112.5 |
135 |
2870 |
|
Plasticising weight(PS) |
g |
101 |
121 |
2611 |
|
Injection pressure |
l Kg/cm |
232 |
194 |
1640 |
|
Theoretical injection rate(PS) |
g |
62 |
72 |
499 |
|
Screw torque |
N.m |
390 |
|
Max. screw rotate speed |
r/min |
220 |
|
Injection stroke |
mm |
140 |
|
Pump motor power |
KW |
9 |
|
Pump pressure |
KG/cm |
16 |
|
Heating power |
KW |
6.2 |
|
Heating zone |
|
4 |
|
Size |
m |
3.55×1.2×1.6 |
|
Net weight |
t |
2.7 |
|
International designation |
|
700-230 |
