Product Specifications
| Prod Model: |
W11 SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color:Customized: |
Power: Mechanical |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Medical |
| Type: |
Roll Forming Machine |
Product Description
Main characters:
1 Plate-rolling form
2 Mechanical driven
3 Three drive rollers
4 High productivity
5 Easy to operate
6 Excellent product precision
7 Rich bending shapes.
8 CNC control
9 Best after-sale
Specification

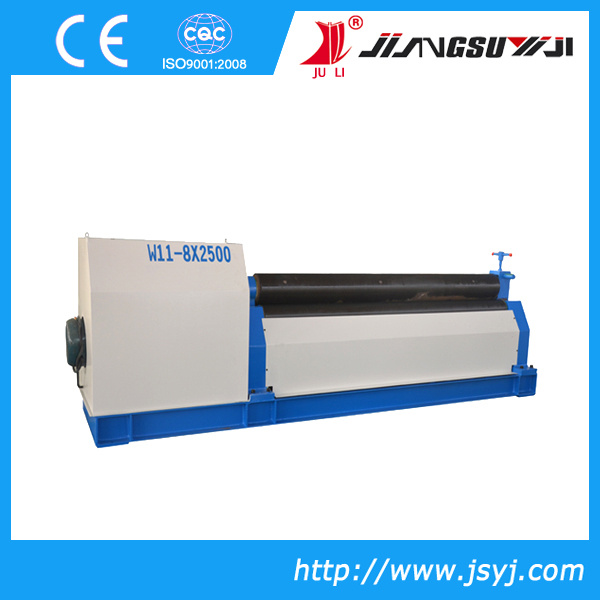

W11-8*2500
Max thickness of coiled plate: 8mm
Max width of coiled plate: 2500mm
Yielding limit of sheet metal: 245m
Coiling speed: 4m/min
Min full loading diameter of coiled plate: 600mm
Diameter of top sharft: 240mm
Diameter of bottom sharft: 180mm
Central distance between bottom sharfts: 280mm
Motor power: 7.5kw
Size: 4300*1169*1272mm
Weight: 4200kg
Character:
Extra Services: Exported to Countries USA, Australia, Brazil, Saudi Arabia, etc.
Material of the roller: 42CrMo
Transducer: Omron
Control: CNC
Pump: Gear pump
PLC: MITSUBISHI
Operation: Touch Screen
Seal parts: AILATE
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nuts, the worm and the lead screw, the two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for prebending.
Anna/Overseas Sales
MP: +86-188-6272-7666
Tel: +86-513-8869-1388
Fax: +86-513-8026-0000
|
Specification |
Maxthickness of coiled plate(mm) |
Max width of coiled plate(mm) |
Yielding limit of sheet metal(mm) |
coiling speed (m/min) |
Min full loading diameter of coiled plate(mm) |
Diameter of top sharft (mm) |
Diameter of bottom sharft (mm) |
Central distance between bottom sharfts (mm) |
Motor power (kw) |
Size(mm) |
Weight (Ton)kg |
|
W11J-6*1500 |
6 |
1500 |
245 |
5 |
450 |
160 |
160 |
220 |
4 |
3129*850*1100 |
2200 |
|
W11J-3*3200 |
3 |
3200 |
245 |
5 |
450 |
150 |
140 |
220 |
5.5 |
4400*850*1270 |
3400 |
|
W11J-4*2500 |
4 |
2500 |
245 |
5 |
450 |
160 |
140 |
220 |
5.5 |
4200*850*1250 |
3200 |
|
W11J-6*2000 |
6 |
2000 |
245 |
4.5 |
450 |
170 |
170 |
250 |
5.5 |
3629*850*1270 |
2890 |
|
W11J-8*2500 |
8 |
2500 |
245 |
4 |
600 |
240 |
180 |
280 |
7.5 |
4300*1169*1272 |
4200 |
|
W11J-10*2000 |
10 |
2000 |
245 |
4 |
600 |
220 |
170 |
280 |
7.5 |
3791*1169*1250 |
4050 |
|
W11J-10*2500 |
10 |
2500 |
245 |
4 |
600 |
250 |
190 |
320 |
11 |
4680*1250*1450 |
4800 |
|
W11J-10*3000 |
10 |
3000 |
245 |
4 |
650 |
250 |
220 |
320 |
11 |
5180*1250*1450 |
6350 |
|
W11J-12*2000 |
12 |
2000 |
245 |
4 |
600 |
240 |
180 |
280 |
7.5 |
3791*1169*1272 |
3800 |
|
W11J-12*2500 |
12 |
2500 |
245 |
4 |
650 |
260 |
220 |
320 |
11 |
4680*1250*1450 |
5800 |
|
W11J-16*2000 |
16 |
2000 |
245 |
4 |
650 |
260 |
220 |
320 |
11 |
4180*1250*1450 |
5050 |
|
W11J-12*2500 |
12 |
2500 |
245 |
4 |
700 |
280 |
240 |
359 |
11 |
5200*1400*1450 |
8010 |
