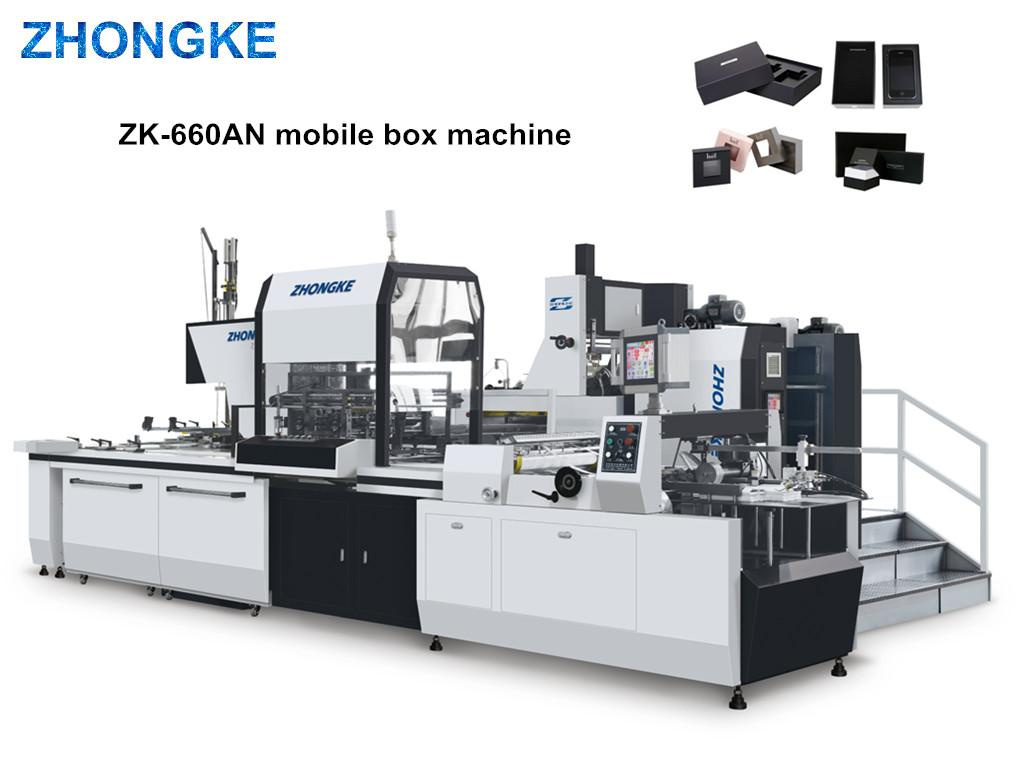

Product Specifications
| Prod Model: |
ZK-660A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Box Size:400*300*125mm: |
Min Box Size:125*85*20mm |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
Product Description

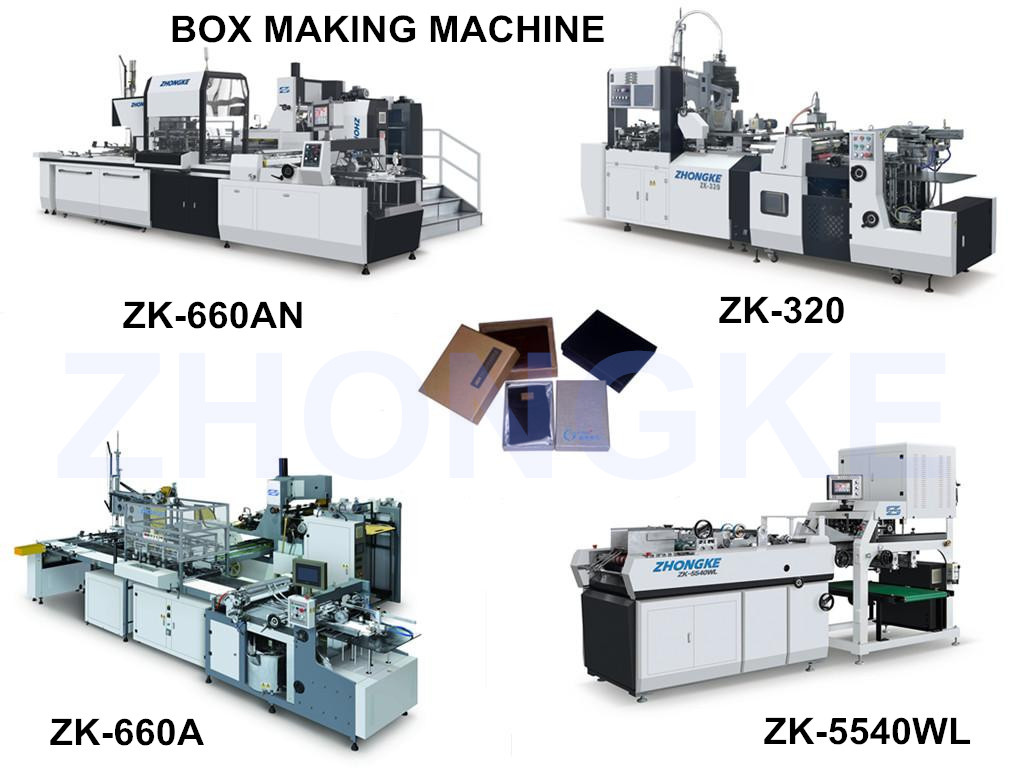

Zhongke Packaging Machinery Co., Ltd. Professional manufacturer of full automatic rigid paper box making machine, paper box making lines, rigid paper box making lines, paper box making machinery, rigid paper box making machinery, paper box forming machinery, rigid paper box forming machinery, paper box equipment, rigid paper box equipment, paper box, rigid paper box, paper box machinery and so on.
Feature:

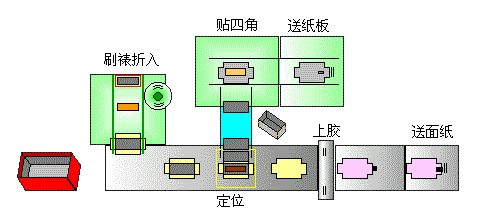

1. Feeding system feed the paper wrap piece by piece automatically.
2. Equipped with heat exchanging Gluing system.
3. Heat Sealed device equipped achieves corner sticking for cardboard in one process.
4. Spotter system achieves exactly position for unwrapped box and glued wrap by servo motor and vacuum suction belt conveyor, with precision error 0.5mm.
5. Arm automatic guiding device between the conveyor belt and wrapper unit is controlled by computer.
6. Wrapper unit achieves box-feeding, side winding, roll-folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
8. Automatic trouble diagnosing.
Main technical parameters:
Size of the finished box: (125-400mm) X(85-300mm) X(20-125mm)
The size of the box is adjustable as long as it is in the above dimension ranges.
Speed up to: 20-25 PCS/Min
Paper wrap thickness: 100-157 GSM
Cardboard blank thickness: 0.8-3mm
Electrical power: 380V, 50Hz, 20 KW
Dimension: 6800mm(lengthX3500mm(width)X2600mm(height)
Weight: 8000kg
Lines for the production of rigid set up boxes(luxury boxes, luxury packaging, gift boxes, wine and spirit boxes, shirt and shoes boxes, make-up and toiletry boxes, biscuits and cakes boxes, ring binder boxes, cd dvd and book boxes, cylindrical boxes).
Paper wrap size
A=width;
B=length | Amin | 150mm |
| Paper wrap grammage | Min | 100g/m2 |
| Amax | 580mm | Max | 160g/m2 |
| Bmin | 180mm | Cardoard blank thickness | Min | 0.8mm |
| Bmax | 660mm | Max | 3mm |
Box size
L=length;
W=width;
H=height; | Lmin | 125mm | Speed/(pcs/Min) | 20-25 |
| Lmax | 400mm | Paper pile height | 260mm |
| Wmin | 85mm | Cardboard pile height | 1000mm |
| Wmax | 300mm | Electrical power | 20kw |
| Hmin | 20mm | Glue tank capacity/(Litre) | 45 |
| Hmax | 125mm | Air supply/(Litre/min) | 12 |
| Turn in Depth:R | Rmin | 10mm | Net weight | 8000kg |
| Rmax | 55mm | Machine overall dimension | L6.8XW4.2XH2.6m
|
Zhongke Packaging Machinery Co., Ltd. Was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. Zhongke covering an area of 100, 000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
