Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Compression Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Control: |
Microcomputer |
| Oil Cylinder Position: |
No |
Product Description

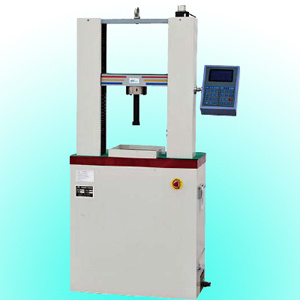

WDW-Y15 Electronic Compression Testing Machine
1. Model: WDW-Y15
2. Product name: electronic compression testing machine
3. Introduction and application of testing machine
The machine is mainly used to test the properties of iron ore by the application of a compressive load to a single iron ore pellet at a specified speed of the compressive platen until the pellet is broken.
4. Definition
Crushing strength: the applied maximum compressive load at which an iron ore pellet is broken completely, and which is expressed as the mean value of all measurements of test sample.
5. Taking of sample
The test sample (test pieces) for determining the crushing strength shall by obtained at random, for example by the use of a random selection plate, on about 1kg of the sample for physical testing. The test sample shall be oven dried at 105±5ºC and cooled to room temperature before testing.
6. Number of test pieces (iron ore pellets)
Sixty or more test pieces, or as agreed upon between the interested parties, shall be tested for each sample.
7. Test procedure
Place a test piece (single pellet) at the approximate centre of the surface-hardened portion of the lower platen. Apply the load at a constant rate between 10 and 20mm/min throughout the test period.
Record the maximum load, at which the test piece undergoes complete breakage, to at least one decimal place, in decanewtons.
Note: complete breakage is ensured by continuing to apply the load until the platen gap has closed to 50% of the average test piece size.
Clean the platens thoroughly before the next test piece(single pellet) is tested.
Repeat the procedure on the remaining test pieces.
8. Main technical parameters of testing machine
| 1 | Max test force | 15KN |
| 2 | Measuring range | 200N-15KN |
| 3 | Precision | 1% |
| 4 | Resolution of displacement | 0.01mm |
| 5 | Speed range of displacement | 0.2-500mm/min |
| 6 | Compression space | 400mm |
| 7 | Effective width | 360mm |
| 8 | Voltage and power | 220V, 50Hz, 750W |
| 9 | Dimension of main machine | 740X350X1600mm |
| 10 | Weight | 225kg |
1. Brief introduction
Jinan Bang ke Testing Machine Co., Ltd, with rich experience and outstanding business philosophy, is specialized in designing and manufacture various testing machines. On the basis of our much experiences of designing and sales group, we have the ability to supply a variety of normal and special testing equipments and also our customers can enjoy our superior services.
2. Products
Electronic universal testing machine, Compression testing machine, Hydraulic universal testing machine, Tension testing machine, Static stiffness testing machine, Ring stiffness testing machine, Wood based panel testing machine, Torsion testing machine, Fatigue testing machine, Bending testing machine, Impact testing machine
3. Materials can be tested:
Metal and non-metal materials, Composite materials, Rubber and plastic, Construction materials, Weave, Package, Wire and cable, Spring, Tubing, Wood Pellet ore, Other materials.
4. Appliction industries
Mechanical metallurgy, Petrochemical industry, Construction, Electricity and coal industry, Measurement and quality inspection, Inspection, Aerospace, Transportation, etc.
